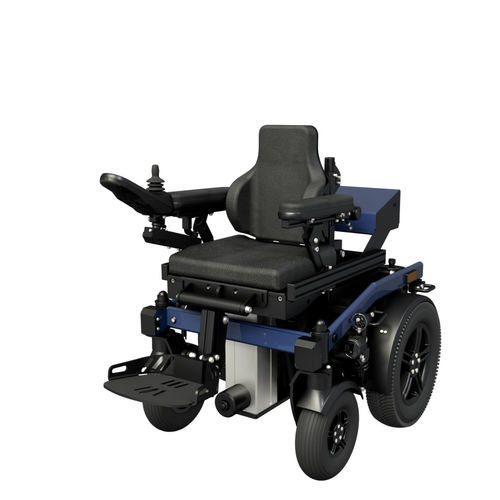

Electric wheelchair Swiss Viva Junior

pediatricoutdoorall-terrain

Product overview
The Swiss Viva Junior is a modular pediatric powered wheelchair designed to adapt from childhood into adulthood. It combines compact external dimensions with full electric functions and multiple positioning options, including optional remote stop for caregiver control.

Main features

• Grows with the user
• Extremely compact footprint
• Highly manoeuvrable
• Biomechanical back length compensation
• Integrated charger
• Optional emergency/remote stop
• High-quality construction and sustainable design

Benefits
PERFECTLY ADAPTABLE: Modular construction and a biodynamic positioning package allow the Viva Junior to follow the user’s movements: adjustable headrest, leg rests and seat angle keep alignment with the body.

GROWS WITH THE USER: Numerous adjustment options and interchangeable seat units enable the chair to be adapted as the child grows and later converted for adult use.

FREEDOM TO EXPLORE DAILY: Compact dimensions, powerful motors and all-terrain capability enable outdoor excursions. Special controls and the optional remote stop give caregivers effective temporary control when needed.

Colors

• Pure orange
• Raspberry red
• Ultramarine blue
• Turquoise blue
• Pearl gentian blue
• Night Rider (glows in the dark)

Technical specifications

• Maximum speed: 8 / 12 km/h
• Total length with standard leg rests / without leg rests: 95 cm / 66 cm
• Width: 60 cm
• Turning radius with leg rests: 79 cm
• Standard seat width: 25–35 cm
• Standard seat depth: 35–42.5 cm
• Minimum seat height without cushion: 45 cm
• Seat height including SKS standard seat: 50 cm
• Seat angle mechanically adjustable / electric: 0–17° / 0–27°
• Back angle mechanically adjustable / electric: 90–102° / 90–150°
• Electric seat lift: 0–27 cm
• Electrically raised leg rests: YES
• Adjustable leg rest bracket: n.a.
• Front wheel diameter: 20 / 23 / 26 cm
• Drive wheel diameter: 35 cm
• Drive motor: 2 x 350 W
• Batteries: 2 x 12 V / 63 Ah (C20)
• Load capacity: 100 kg
• Maximum obstacle height: 5–6 cm

Characteristics

• Modular design with many special-construction options
• Biodynamic positioning package for individual fit
• Interchangeable seat units to accompany growth
• Integrated charger for convenient recharging
• Optional remote stop / emergency stop
• Electric seat lift 0–27 cm
• Electrically operated leg rests
• Drive: 2 x 350 W motors
• Batteries: 2 x 12 V / 63 Ah (C20)
• Load capacity up to 100 kg
