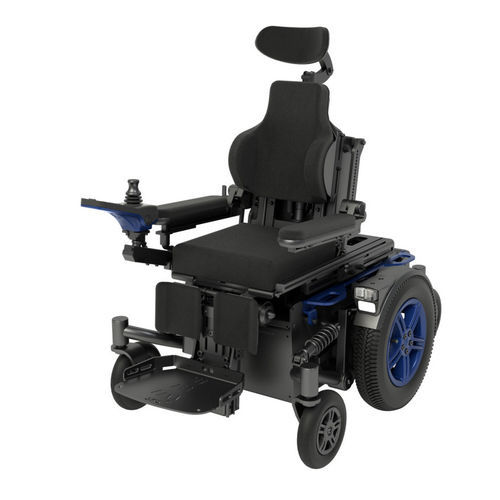

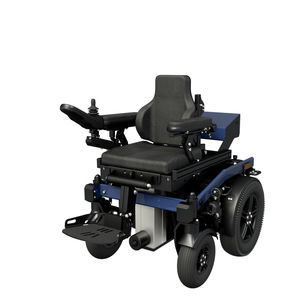

Electric wheelchair Swiss Viva Junior M

pediatricoutdoorindoor

Product overview
The compact Viva Junior M is a pediatric mid-wheel drive powered wheelchair designed for daily use and outdoor mobility. Its mid‑wheel drive and independent suspension deliver tight turning indoors and stable travel on uneven terrain. The model can be configured via targeted custom options to match clinical and daily requirements, from school environments to outdoor activities.

Key features

• Modular design that accommodates growth and changing needs
• Compact, rugged and highly manoeuvrable
• Balanced performance: exceptional indoor agility and reliable outdoor ride
• Mid‑wheel drive with independent suspension for precise handling
• Extensive custom-build options for individual positioning
• Electrical adjustability: seat tilt, backrest tilt with length compensation, articulating arm supports and leg support with length compensation
• Optional anterior lift moves the seat forward and upward (0–30 cm)
• High-quality components and retrofit adaptability
• Optional emergency stop
• Flexible centre-of-gravity positioning

How it can change your life

• HIGHLY MANOEUVRABLE: Mid‑wheel drive and narrow, sturdy construction allow precise turns indoors and confident travel outdoors thanks to a sophisticated suspension system.
• IMPROVES ACCESSIBILITY: The optional anterior lift brings the user closer to desks, washbasins or counters while the base remains stationary.
• REMEMBERS PREFERRED POSITIONS: Electric seat height, seat tilt and backrest adjustment with memory function enable rapid recall of clinically optimal postures.
• ADAPTS AND GROWS WITH THE USER: Stepless adjustment of seat depth and width, lower leg length, arm length and backrest height; interchangeable seat units for long‑term adaptability.
• BUILT FOR DURABILITY: Robust construction and high-grade motors/components support extended service life; motors are shared with adult models for proven performance.

Colors
turquoise blue, raspberry red, ultramarine blue, Night Rider (glows in the dark)

Technical data (table)
Maximum speed: 8 / 12 km/h
Overall length with standard leg supports / without leg supports: 107 cm / 99 cm
Width: 59 cm
Turning radius with leg supports: 65 cm
Standard seat width: 29–50 cm
Standard seat depth: 19–49 cm
Minimum seat height without seat cushion, while seated: 39 cm
Seat height, including SKS standard seat: 44 cm
Electric seat tilt: -15° to +45°
Electric backrest tilt: 85°–150° (175°)
Electric seat lift: 0–30 cm
Electrically adjustable leg supports: YES
Diameter of front and rear wheels: 17.5 cm
Diameter of drive wheels: 35 cm
Drive motor: 2 x 400 W
Batteries: 2 x 12V / 60 Ah (C20)
Weight capacity: 75 kg
Maximum obstacle height: 7 cm

Technical specifications

• Maximum speed: 8 / 12 km/h
• Overall length with standard leg supports / without leg supports: 107 cm / 99 cm
• Width: 59 cm
• Turning radius with leg supports: 65 cm
• Standard seat width: 29–50 cm
• Standard seat depth: 19–49 cm
• Minimum seat height without seat cushion, while seated: 39 cm
• Seat height, including SKS standard seat: 44 cm
• Electric seat tilt: -15° to +45°
• Electric backrest tilt: 85°–150° (175°)
• Electric seat lift: 0–30 cm
• Electrically adjustable leg supports: YES
• Diameter of front and rear wheels: 17.5 cm
• Diameter of drive wheels: 35 cm
• Drive motor: 2 x 400 W
• Batteries: 2 x 12V / 60 Ah (C20)
• Weight capacity: 75 kg
• Maximum obstacle height: 7 cm
