Electric wheelchair Swiss Viva Junior F

pediatricoutdoorindoor

Overview

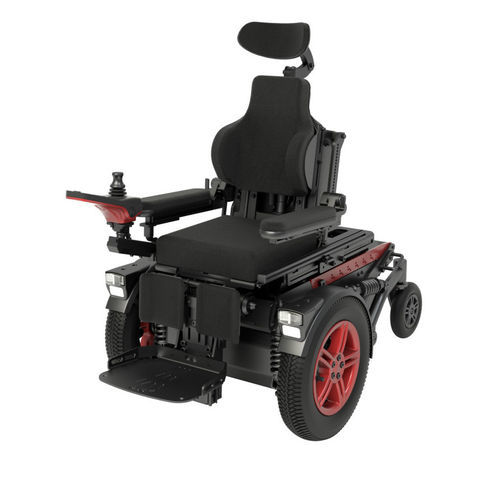

Swiss Viva Junior F is a paediatric front-wheel drive powered wheelchair engineered for mixed indoor and outdoor use. Its powerful motors and independent suspension enable travel on inclines and uneven terrain while compact overall dimensions preserve indoor manoeuvrability. Electrically adjustable seat systems and modular components allow precise adaptation and growth with the user.

THIS IS WHAT IT OFFERS

• Grows with the user via stepless adjustment of seat depth and width, lower leg length, arm length and backrest height; interchangeable seat units
• Slim, durable chassis for outdoor riding and indoor agility
• Excellent handling due to independent suspension
• Comprehensive customisation options and retrofit adaptability
• Electrical adjustability: seat tilt, backrest tilt with length compensation, movable arm supports, leg supports with length compensation
• Optional anterior (front) lift: moves the seat forwards and upwards
• Optional emergency stop and flexible centre-of-gravity positioning

HOW IT CAN CHANGE YOUR WORKING LIFE
OUTDOOR PERFORMANCE AND INDOOR AGILITY
Daily routes, forest paths or lakeside access: the Junior F supports safe and efficient movement across varied environments. Powerful drive units and independent suspension manage rough outdoor surfaces. Compact footprint and modern controls maintain manoeuvrability indoors.

BUILT TO LAST
Designed for long service life with high-grade components and robust construction. The drive system uses the same motor technology as larger models to ensure sustained performance and low maintenance needs.

BRINGS YOU CLOSER
The optional anterior lift moves the seat forward and upward while the chair remains stationary, facilitating closer access to desks, washbasins or counters without requiring a standing function.

REMEMBERS THE RIGHT POSITION
Electric adjustment of seat height, backrest and seat angle combined with a memory seating function lets operators save and recall preferred settings at the touch of a button.

ADAPTS AND GROWS ALONG WITH YOU
Extensive customisation enables long-term use: adjustable seat depth/width, lower leg length, arm length and backrest height plus interchangeable seat units accommodate growth and changing needs.

COLORS
turquoise blue; raspberry red; ultramarine blue; Night Rider (glows in the dark).

Technical data

• Maximum speed: 8 / 12 km/h
• Overall length (with/without leg supports): 110 cm / 96 cm
• Width: 59 cm
• Turning radius (with leg supports): 66 cm
• Standard seat width: 29–50 cm
• Standard seat depth: 19–49 cm
• Minimum seat height (without cushion, seated): 39 cm
• Electric seat tilt: -15° to +45°
• Electric backrest tilt: 85°–150° (175°)
• Electric seat lift: 0–30 cm
• Electrically adjustable leg supports: Yes
• Steering wheel diameter: 17.5 cm
• Drive wheel diameter: 35 cm
• Drive motor: 2 x 400 W
• Batteries: 2 x 12V / 60 Ah (C20)
• Weight capacity: 75 kg
• Maximum obstacle height: 7 cm
