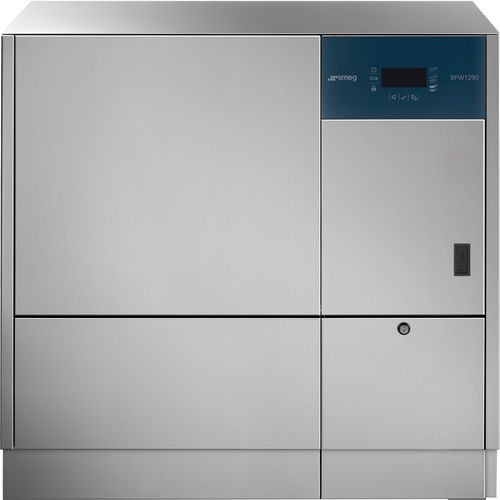

Automatic bedpan washer BPW1290JEK5

stainless steel

General
Product family: Bedpan washers
Model / Code: BPW1290JEK5
Type: Bedpan washer with automatic opening; Opening/closing door: Manual flap door

Target
Health care: Nursing homes; Hospital wards
Instruments solutions: Health care

Aesthetics
Colour: Steel

Technical Features

• Washing capacity: 4 urinal bottles; 2 urinal bottles + 1 bedpan
• Door: 1 swing door in stainless steel
• Opening/closing door: Manual flap door
• Emergency opening system: Yes
• Sky sprinkler: Yes
• Sprayers rotation control: Yes
• HEPA filter: Optional
• Noise level: <60 dBA
• Dimensions (mm): 860x900x650

Programs

• Standard programs: Urine bottles program; Bedpan normal program; Intensive bedpan program
• Eco programs: ECO urine bottles program; ECO bedpan program; ECO intensive bedpan program
• Program editing: Yes
• Adjustable A0 range: 60 - 600

Baskets

• Type of supports: 1 bedpan and 2 urinal bottles

Electrical Connection
Electrical connection: 400V 3N AC 50Hz; Monophase version available; 60 Hz on demand; Plug: Cable with free ends

Hydraulic Connection
Hot water connection with acquastop: Yes; Cold water connection with acquastop: Yes

Manuals and Certifications
Medical device: According to (EU) Regulation 2017/745 (Annex IX) class IIa; DMS Reference: Version 01 - 12/12/2025

Interface

• Electronic control with LCD display
• Remaining duration display and end-of-cycle indicator
• Cycle archive and cycle download via USB pen drive
• Traceability: At least the last 300 executed programs

Construction
External material: AISI 304; Washer chamber material: AISI 304

Equipments

• Steam condenser: Yes
• Chemicals dosing: Standard for descaler
• Detergent peristaltic dosing pump: Optional
• Detergent level sensor: Included
• Anti-limescale dosing peristaltic pump: Yes
• Acqua Stop: Yes

Medical device standards
DMS Reference: Version 01 - 12/12/2025

Specifications

• Product family: Bedpan washers
• Model / Code: BPW1290JEK5
• Type: Bedpan washer with automatic opening
• Opening/closing door: Manual flap door; Door: 1 stainless steel swing door
• Washing capacity options: 4 urinal bottles; 2 urinal bottles + 1 bedpan
• Emergency opening system: Yes; Sky sprinkler: Yes; Sprayers rotation control: Yes; HEPA filter: Optional
• Noise level: <60 dBA
• Dimensions (mm): 860 x 900 x 650
• Electrical: 400V 3N AC 50Hz (monophase available; 60 Hz on demand); Plug: cable with free ends
• Hydraulic: Hot/cold water connection with acquastop
• Interface and traceability: USB download; at least last 300 programs; LCD
• Materials: External and chamber AISI 304
• Equipments: Steam condenser; Chemicals dosing standard for descaler; Detergent dosing pump optional; Detergent level sensor included; Anti-scale dosing pump; Acqua Stop
