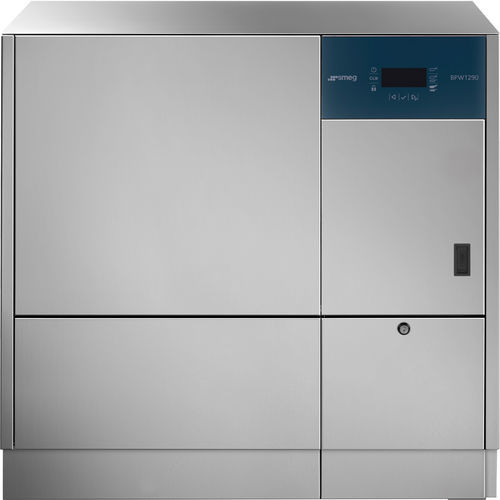

Compact bedpan washer BPW1290J-K5

automaticstainless steel

Product overview
Bedpan washer designed for healthcare environments. Configured for automatic-opening operation with a manual flap door and selectable washing capacities to suit wards and long-term care facilities. Classified as a medical device under (EU) Regulation 2017/745 (Annex IX) class IIa.

Target

• Health care sector: nursing homes; hospital wards
• Instrument solution: health care sanitation and decontamination

Aesthetics

• Colour: Steel

Type

• Product family: Bedpan washers
• Type: Bedpan washer with automatic-opening configuration

Technical Features

• Washing capacity: 4 urinal bottles; 2 urinal bottles + 1 bedpan; 2 bedpans (optional)
• Door: 1 swing door in stainless steel
• Opening/closing door: Manual flap door
• Emergency opening system: Yes
• Sky sprinkler: Yes
• Sprayers rotation control: Yes
• HEPA filter: Optional
• Noise level (dBA): <60 dBA
• Dimensions (HxWxD mm): 860 x 900 x 650

Programs

• Standard stored programs: Urine bottles program, Bedpan normal program, Intensive bedpan program
• Eco programs: ECO urinal bottles program, ECO bedpan program, ECO Intensive program for bedpans
• Optional factory-installed programs: Multifunctional support program, Clostridium program
• Program editing: Yes
• Adjustable A0: Yes, range 60–6000

Baskets

• Type of supports: 1 bedpan and 2 urinal bottles; 2 bedpans (R-2B)

Electrical connection

• Electrical connection: 400V 3N AC 50Hz
• Single-phase version: Available
• 60 Hz option: Yes, on demand
• Plug: Cable with free ends

Hydraulic connection

• Hot water connection with AcquaStop: Yes
• Cold water connection with AcquaStop: Yes

Manuals and Certifications

• Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa: Yes
• DMS Reference: Version 01 - 12/12/2025

Interface

• Cycle archive: Yes
• Electronic control: Yes
• Remaining duration display: Yes
• End-of-cycle indicator: Yes
• Cycle download: Yes, via USB pen drive
• Traceability: At least the last 300 executed programs
• Display: LCD

Construction

• External material of the machine: AISI 304
• Washer chamber material: AISI 304; AISI 316 optional

Equipments

• Steam condenser: Yes
• Chemicals dosing: Standard for descaler
• Detergent peristaltic dosing pump: Optional
• Detergent level sensor: Included
• Anti-limescale dosing peristaltic pump: Yes
• AcquaStop: Yes

Medical devices normative

• DMS Reference: Version 01 - 12/12/2025

Characteristics / Technical specifications

• Model / Commercial name: BPW1290J-K5
• Brand: Smeg
• Type: Bedpan washer with automatic-opening configuration
• Opening/closing door: Manual flap door
• Washing capacity options: 4 urinal bottles; 2 urinal bottles + 1 bedpan; 2 bedpans (optional)
• Door construction: 1 swing door in stainless steel
• Emergency opening system: Yes
• Sky sprinkler: Yes
• Sprayers rotation control: Yes
• HEPA filter: Optional
• Noise level: <60 dBA
• Dimensions (HxWxD mm): 860 x 900 x 650
• Standard stored programs: Urine bottles, Bedpan normal, Intensive bedpan
• Eco programs: ECO urinal bottles, ECO bedpan, ECO Intensive for bedpans
• Optional factory programs: Multifunctional support, Clostridium program
• Adjustable A0 range: 60–6000
• Baskets / supports: 1 bedpan and 2 urinal bottles; 2 bedpans (R-2B)
• Electrical: 400V 3N AC 50Hz; single-phase version available; 60 Hz on demand; cable with free ends
• Hydraulic: Hot and cold water connections with AcquaStop
• External material: AISI 304
• Washer chamber material: AISI 304 (AISI 316 optional)
• Equipments: Steam condenser, chemicals dosing (descaler), detergent level sensor, anti-limescale dosing pump, AcquaStop; detergent peristaltic dosing pump optional
• Medical device classification: (EU) Regulation 2017/745 (Annex IX) class IIa
• Interface / traceability: Cycle archive, electronic control, remaining duration display, end-of-cycle indicator, cycle download via USB, traceability of at least last 300 programs, LCD display
