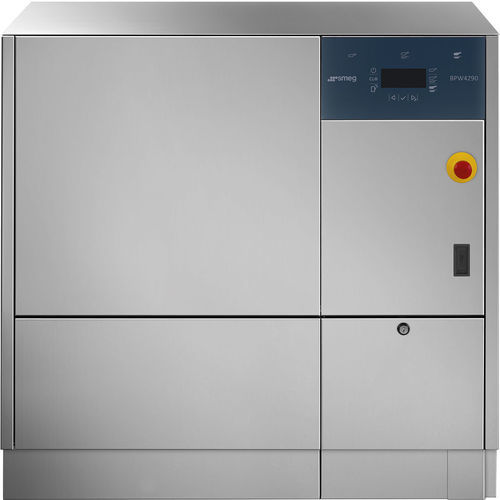

Compact bedpan washer BPW4290J-K5

automaticstainless steel

Product

• Type: Bedpan washer with automatic opening
• Model/Code: BPW4290J-K5
• Colour: Steel
• Medical device: according to (EU) Regulation 2017/745 (Annex IX) class IIa

Key features

• Door opening/closing: Automatic (pedal / touchless sensor / display)
• Washing capacity: 4 urinal bottles; 2 urinal bottles + 1 bedpan; 2 bedpans (optional)
• Door: 1 automatic door with emergency opening system
• Sky sprinkler and rotating sprayers with rotation control
• HEPA filter: Optional
• Noise level: <60 dBA
• Dimensions (HxWxD mm): 860 x 900 x 650

Target
Nursing homes; Hospital wards

Aesthetics
Colour: Steel

Programs

• Standard programs: Urine bottles, Bedpan normal, Bedpan intensive
• Eco programs: ECO urine bottles, ECO bedpan, ECO intensive bedpan
• Optional factory programs: Multifunctional support program, Clostridium program
• Program editing: Yes
• Adjustable A0: Yes, from 60 to 6000

Baskets / Supports
Type of supports: 1 bedpan + 2 urinal bottles; 2 bedpans (R-2B) option

Electrical Connection

• Electrical: 400V 3N AC 50Hz
• Single-phase version: Available on request
• 60 Hz: Available on demand
• Plug: Cable with free ends

Hydraulic Connection
Hot water connection with acquastop: Yes
Cold water connection with acquastop: Yes

Manuals and Certifications
Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa: Yes

Interface

• Cycle archive: Yes (traceability of at least last 300 executed programs)
• Electronic control with LCD display
• Remaining duration display and end-of-cycle indicator
• Cycle download: Yes, via USB pen drive

Construction

• External material: AISI 304
• Washer chamber material: AISI 304 (AISI 316 optional)

Equipments

• Steam condenser: Yes
• Chemicals dosing: Standard for descaler
• Detergent peristaltic dosing pump: Optional
• Detergent level sensor: Included
• Anti-limescale dosing peristaltic pump: Yes
• Acqua Stop: Yes

Medical devices normative
DMS Reference: Version 01 - 12/12/2025

Technical specifications

• Washing capacity configurations: 4 urinal bottles; 2 urinal bottles + 1 bedpan; 2 bedpans (optional)
• Door: 1 automatic
• Opening/closing: Automatic (pedal / touchless sensor / display)
• Emergency opening system: Yes
• Sprayers rotation control and sky sprinkler: Yes
• HEPA filter: Optional
• Noise level: <60 dBA
• Dimensions (HxWxD mm): 860 x 900 x 650
• Electrical: 400V 3N AC 50Hz (single-phase available; 60Hz on demand); plug: cable with free ends
• Hydraulic: Hot and cold water connections with acquastop
• Traceability / Archive: Last 300 executed programs; cycle download via USB
• Materials: External AISI 304; washer chamber AISI 304 (AISI 316 optional)
• Adjustable A0 range: 60–6000
