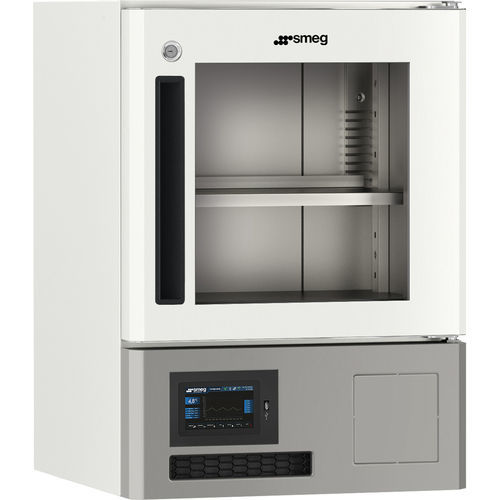

Blood bank refrigerator FE10G1EVO

uprightcompacton casters

Overview
Smeg designed in Italy: blood and plasma storage unit FE10G1EVO combining a compact footprint, precise temperature control and a 7' touchscreen interface suited for clinical environments.

Target

• Instruments Solutions: Health Care
• Health Care Sector: Hospital Pharmacy; Analysis Laboratory

Type

• Blood bank refrigerator

Main features

• Capacity: 100 l
• Temperature range: +2/+6 °C
• Safety thermostat +2°C (DIN 58345): Standard
• Battery backup for alarm control unit: Standard
• Datalogger: Yes
• Medical device (EU Regulation 2017/745 Annex IX) class IIa: Yes
• Lock: Standard
• Lateral passing hole: Optional
• Free contact for remote alarm: Standard
• Insulation: 60 mm
• Evaporation: Ventilated
• Refrigerant gas: R290 (CFC free)
• Internal lighting: LED
• Reversible door: Yes

Technical Features

• Display: 7' LED touchscreen (800x480) with real-time temperature graph
• USB port: Yes
• Alarm indicators: audible and visible; alarm indicator on display
• Noise level: 45 dBA
• Doors: 1
• Wheels: 4; Feet: 2

Performance / Energy

• Noise level: 45 dBA

Electrical Connection

• Voltage: 230V, 50Hz
• Plug: (F;E) Schuko

Interface

• Display with real-time temperature graph and alarm indicator
• Audible alarm: Yes
• Visible alarm: Yes
• USB port: Yes

Construction

• Door: Glass
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel, coated with white PVC

Logistic Information

• External dimensions (WxDxH): 60 x 60 x 86 cm

Manuals and Certifications

• Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa: Yes
• Conformity to EN 13277 (ex DIN 58345): Yes
• DMS Reference: Version 02 - 24/6/2025

Accessories included

• Standard drawers: 2

Optional

• BTEVO — Backup battery - EVO series
• TERMDIN — Safety thermostat +2°C DIN58345 compliance

Technical specifications

• Model: FE10G1EVO
• Brand: Smeg
• Product type: Blood bank refrigerator
• Capacity: 100 l
• Temperature range: +2/+6 °C
• Refrigerant: R290 (CFC free)
• Insulation thickness: 60 mm
• Evaporation: Ventilated
• Display: 7' LED touchscreen (800x480) with real-time temperature graph
• Alarms: audible, visible, alarm indicator on display, free contact for remote alarm, battery backup (standard)
• Datalogger: Yes
• Lock: Standard
• Lateral passing hole: Optional
• Internal lighting: LED
• Reversible door: Yes
• Door material: Glass
• Chamber material: Scotch Brite stainless steel
• External dimensions (WxDxH): 60 x 60 x 86 cm
• Noise level: 45 dBA
• Voltage / Frequency: 230V, 50Hz
• Plug type: (F;E) Schuko
• Doors quantity: 1
• Wheels: 4
• Feet: 2
• Medical device classification: EU Regulation 2017/745 class IIa
