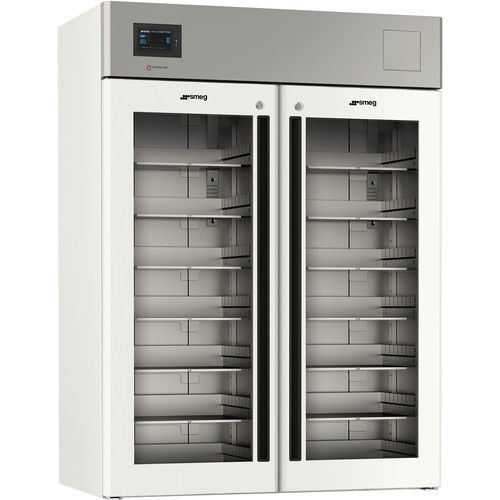

Blood bank refrigerator FE140G2EVO

uprighton casters2 doors

Overview
Blood bank refrigerator designed by Smeg for storage of blood and plasma in clinical and laboratory environments. Compliant with (EU) Regulation 2017/745 (MDR) and EN 13277 (ex DIN 58345).

Target / Applications

• Instruments Solutions: Health Care
• Health Care Sector: Hospital pharmacy; Analysis laboratory

General information

• Type: Blood bank refrigerator
• Capacity: 1400 L
• Temperature range: +2/+6 °C
• Medical device (MDR (EU) 2017/745, Annex IX) class IIa: Yes
• Conformity to EN 13277 (ex DIN 58345): Yes

Technical Features

• Datalogger: Yes
• Safety thermostat cut-off at +2 °C (DIN 58345 compliance): Standard
• Battery backup for alarm control unit: Standard
• Free contact for remote alarm: Standard
• Lock: Standard
• Lateral passing hole: Optional
• Insulation thickness: 60 mm
• Evaporation: Ventilated
• Refrigerant gas: R290 (CFC free)
• Internal lighting: LED
• Reversible door: Yes

Interface and Alarms

• Display: 7" LED touch screen, 800x480, real-time temperature graph
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visible alarm: Yes
• USB port: Yes

Performance / Energy Label

• Noise level: 45 dBA

Electrical Connection

• Voltage / Frequency: 230V, 50Hz
• Plug: (F;E) Schuko

Construction

• Door: Glass
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel, non-corrosive, coated with white PVC film
• Doors quantity: 2
• Wheels: 4
• Feet: 2

Logistic Information

• External dimensions (W x D x H): 140 x 80 x 199 cm

Manuals and Certifications

• Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa: Yes
• Conformity to EN 13277 (ex DIN 58345): Yes
• DMS Reference: Version 02 - 24/06/2025

Accessories included

• Standard drawers: 14

Technical specifications

• Model code: FE140G2EVO
• Type: Blood bank refrigerator
• Capacity: 1400 L
• Temperature range: +2/+6 °C
• Refrigerant: R290 (CFC free)
• Insulation thickness: 60 mm
• Internal lighting: LED
• Display: 7" LED touch screen, 800x480, real-time temperature graph
• Alarms: audible, visible, display indicator, free contact for remote alarm, battery backup for alarm control unit
• Data logger: Yes (USB port)
• Door: Glass, reversible
• Chamber material: Scotch Brite stainless steel
• External dimensions (W x D x H): 140 x 80 x 199 cm
• Voltage / Frequency: 230V, 50Hz (Plug: Schuko)
• Noise level: 45 dBA
• Accessories: 14 standard drawers
• Regulatory: Medical device MDR (EU) 2017/745 class IIa; Conformity to EN 13277 (ex DIN 58345)
