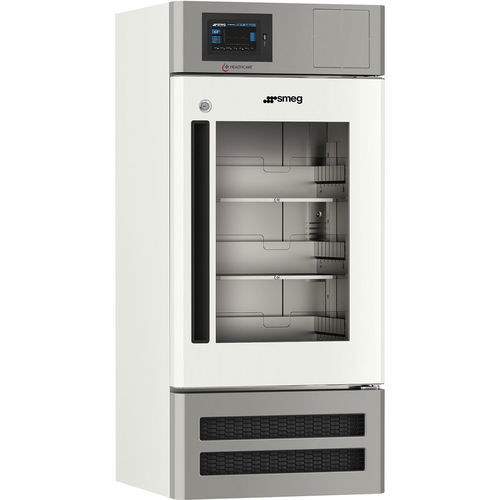

Blood plasma refrigerator FE15G1EVO
for pharmaciesfor clinical laboratoriesblood bank

Blood plasma refrigerator - FE15G1EVO - SMEG Instruments - for pharmacies / for clinical laboratories / blood bank
Blood plasma refrigerator - FE15G1EVO - SMEG Instruments - for pharmacies / for clinical laboratories / blood bank
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for blood plasma, for pharmacies, for clinical laboratories, blood bank
Configuration
upright
Number of doors
1-door
Door type
with glass door
Cooling system
with forced air cooling
Power source
electric
Other characteristics
with drawer, stainless steel, with natural refrigerant
Capacity

150 l
(39.63 gal)

Temperature range

Max.: 6 °C
(42.8 °F)

Min.: 2 °C
(35.6 °F)

Width

600 mm
(23.6 in)

Depth

60 cm
(24 in)

Height

136 cm
(53.5 in)

Description

Overview
  • Medical device for storage of blood and plasma (blood bank refrigerator) with 150 L capacity.
  • Medical Device according to Regulation (EU) 2017/745 MDR (Annex IX) Class IIa.


Intended use
  • Solutions Instruments: Health Care
  • Health Care sectors: Hospital pharmacy; Clinical laboratory


Type
  • Blood bank refrigerator


Technical features
  • Temperature range: +2/+6 °C
  • Datalogger: Yes
  • Capacity: 150 L
  • Lock: Standard
  • Side pass-through port: Optional
  • Compressor safety cut-off thermostat at +2 °C: Standard
  • Backup battery for alarm acquisition unit: Standard
  • Clean contact for remote alarm: Standard
  • Insulation thickness: 60 mm
  • Evaporation: Forced-air
  • Refrigerant gas: R290
  • CFC Free: Yes
  • Internal lighting: LED
  • Reversible door: Yes


Performance / Energy label
  • Noise level: 45 dBA


Electrical connection
  • Supply voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko


Manuals and certifications
  • Medical Device compliant with Regulation (EU) 2017/745 MDR (Annex IX) Class IIa: Yes
  • Compliance with EN 13277 (ex DIN 58345): Yes


Interface
  • Display: Real-time temperature graph, touch screen, 7'' color LED; resolution 800x480
  • Alarm indicator on display: Yes
  • Acoustic alarm: Yes
  • Visual alarm: Yes
  • USB port: Yes


Construction
  • Door: Glass
  • Chamber material: Stainless steel with Scotch Brite finish
  • External structure material: Hot-dip galvanized anti-corrosion sheet coated with white PVC film
  • Number of doors: 1
  • Castors: 4
  • Feet: 2


Logistics information
  • External dimensions: 60 x 60 x 136 cm


Included accessories
  • Standard drawers: 3


Technical specifications
  • Type: Blood bank refrigerator
  • Capacity: 150 L
  • Temperature range: +2/+6 °C
  • Compressor safety cut-off thermostat at +2 °C: Standard
  • Backup battery for alarm acquisition unit: Standard
  • Datalogger: Yes
  • Lock: Standard
  • Side pass-through port: Optional
  • Clean contact for remote alarm: Standard
  • Insulation thickness: 60 mm
  • Evaporation: Forced-air
  • Refrigerant gas: R290
  • CFC Free: Yes
  • Internal lighting: LED
  • Reversible door: Yes
  • Noise level: 45 dBA
  • Supply voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko
  • Door: Glass
  • Chamber material: Stainless steel with Scotch Brite finish
  • External structure material: Hot-dip galvanized sheet coated in white PVC
  • External dimensions: 60 x 60 x 136 cm
  • Standard drawers: 3
  • Medical device compliance: Class IIa (Reg. EU 2017/745)
