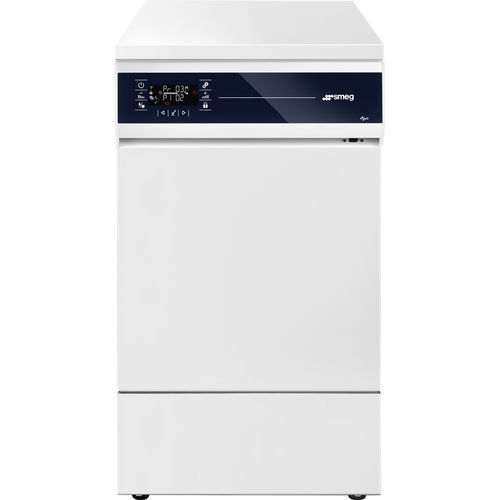

Dental washer-disinfector WD1245-DC-100
for dental instrumentslaboratoryfor the pharmaceutical industry

Dental washer-disinfector - WD1245-DC-100 - SMEG Instruments - for dental instruments / laboratory / for the pharmaceutical industry
Dental washer-disinfector - WD1245-DC-100 - SMEG Instruments - for dental instruments / laboratory / for the pharmaceutical industry
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
laboratory, dental, for dental instruments, for instruments, for the medical sector, for the pharmaceutical industry
Configuration
undercounter
Loading
front-loading
Options
with water softening dosing pump, with manual closure, with base
Height

85 cm
(33.5 in)

Width

62 cm
(24.4 in)

Depth

45 cm
(17.7 in)

Description

Intended use
  • Dental care: washer room
  • Health care: inpatient wards; nursing homes; hospital pharmacy; analysis laboratory
  • Instrument solutions: Health Science; Dental/medical science


Type
  • Type: 45 cm washer-disinfector
  • Door: 1 hinged balanced stainless steel door
  • Load capacity (DIN): up to 2
  • Washing chamber material: Stainless Steel AISI 316L
  • Medical device declaration: Yes


Main technical features
  • Operating temperature: up to 95 °C
  • RS232: Optional
  • Undercounter installation: Yes
  • Tank with guides: Yes
  • External casing material: Stainless Steel AISI 304


Programs
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Ability to modify programs: Yes


Electrical connection
  • Electrical connection: 1N AC 230V - 50Hz
  • 60 Hz option: Yes, on request


Interface and storage
  • USB port: Yes
  • Cycle storage: Yes
  • Cycle archive download: Yes, via USB stick
  • Diagnostics: Remote, with optional software application
  • LAN port for network connection: Optional


Equipment
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Chemical dosing control: Standard
  • Built-in water softener: Yes
  • Steam condenser: Yes


Logistics information
  • Product dimensions LxWxH (mm): 450 x 620 x 850
  • Lower and upper base carts included


Manuals and certifications / Medical device regulation
  • Medical device declaration: Yes
  • DMS reference: Version 03 - 26/06/2025


Additional information
  • Further information: Lower and upper base carts included


Technical specifications
  • Model: WD1245-DC-100
  • Type: 45 cm washer-disinfector
  • Door: 1 hinged balanced stainless steel door
  • Washing chamber material: Stainless Steel AISI 316L
  • External casing material: Stainless Steel AISI 304
  • Load capacity (DIN): up to 2
  • Maximum operating temperature: up to 95 °C
  • Programs: 20 standard stored, 20 modifiable
  • Cycle storage and download: Yes (USB port, with USB stick)
  • Electrical connection: 1N AC 230V - 50Hz (60 Hz on request)
  • Communication interfaces: USB yes, RS232 optional, LAN optional
  • Equipment: peristaltic pumps for detergent and neutralizer, built-in water softener, steam condenser
  • Dimensions (LxWxH): 450 x 620 x 850 mm
