Reprocessing washer-disinfector WD4260 series
dentalundercounterwith warm air dryer

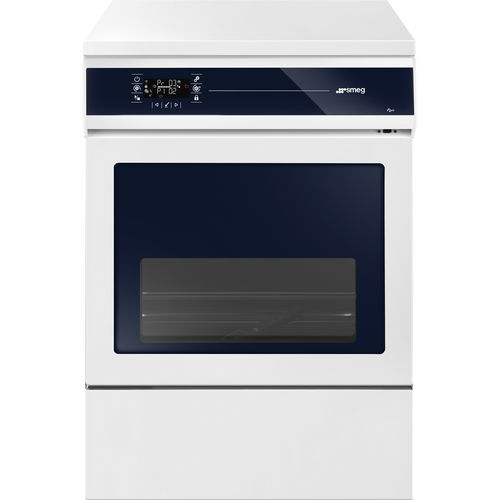

Reprocessing washer-disinfector - WD4260 series - SMEG Instruments - dental / undercounter / with warm air dryer
Reprocessing washer-disinfector - WD4260 series - SMEG Instruments - dental / undercounter / with warm air dryer
Reprocessing washer-disinfector - WD4260 series - SMEG Instruments - dental / undercounter / with warm air dryer - image - 2
Reprocessing washer-disinfector - WD4260 series - SMEG Instruments - dental / undercounter / with warm air dryer - image - 3
Reprocessing washer-disinfector - WD4260 series - SMEG Instruments - dental / undercounter / with warm air dryer - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
reprocessing, dental
Configuration
undercounter
Operational mode
with warm air dryer
Options
with base, with water softening dosing pump
Height

85 cm
(33.5 in)

Width

60 cm
(23.6 in)

Depth

60 cm
(23.6 in)

Description

Overview
  • 60 cm washer-disinfector designed for dental and medical science applications and reprocessing rooms.
  • Medical device declaration: Yes


Main features
  • Type: 60 cm washer-disinfector
  • Door: Stainless steel door with glass viewport
  • Washing chamber material: AISI 316L stainless steel
  • DIN loading capacity: up to 8
  • Operating temperature: Up to 95 °C
  • Drying system: Forced hot-air drying with absolute HEPA filter
  • Under-counter installation: Yes


Programs
  • Stored standard programs: 20
  • Modifiable programs: 20
  • Program editing: Yes


Interfaces and data management
  • USB port: Yes
  • Cycle data storage: Yes
  • Cycle archive download: Yes
  • Diagnostics: Remote, optional; via software application
  • LAN port for network connection: Optional
  • RS232: Optional


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Single-phase version available: Yes, optional
  • 60 Hz option: Yes, on request


Construction and equipment
  • Tub with guides: Yes
  • External casing material: AISI 304 stainless steel
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Possible installation of one additional peristaltic pump: Yes, max. 1
  • Peristaltic pump for disinfectant dosing: Optional
  • Peristaltic pump for lubricant dosing: Optional
  • Chemical dosing control: Standard
  • Built-in water softener: Yes
  • Steam condenser: Yes


Logistics information
  • Dimensions LxPxH (mm): 600 x 600 x 850
  • Additional information: Lower and upper base trolleys included


Available versions
  • WD4260-DC-00G - version with stainless steel door


Manuals and certifications
  • Medical device declaration: Yes
  • DMS reference: Version 02 - 26/06/2025


Technical characteristics / Specifications
  • Type: 60 cm washer-disinfector
  • Operating temperature: up to 95 °C
  • Drying system: Forced hot air with HEPA filter
  • DIN loading capacity: up to 8
  • Washing chamber material: AISI 316L stainless steel
  • External casing material: AISI 304 stainless steel
  • Electrical connection: 3N AC 400V - 50Hz (single-phase optional, 60 Hz on request)
  • Interfaces: USB, cycle storage, archive download; RS232 and LAN optional
  • Peristaltic pumps: detergent and neutralizer dosing standard; disinfectant/lubricant optional; 1 additional pump possible
  • Chemical dosing control: standard
  • Built-in water softener: Yes
  • Steam condenser: Yes
  • Dimensions (LxPxH): 600 x 600 x 850 mm
  • Lower and upper base trolleys: included

Catalogs

No catalogs are available for this product.

See all of SMEG Instruments‘s catalogs
Go to the SMEG Instruments website for more information

Other SMEG Instruments products

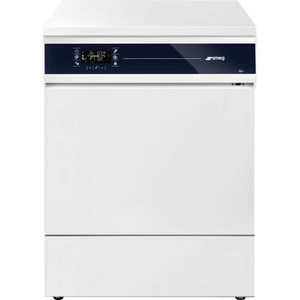

Dental - Washer disinfector for dental practices
