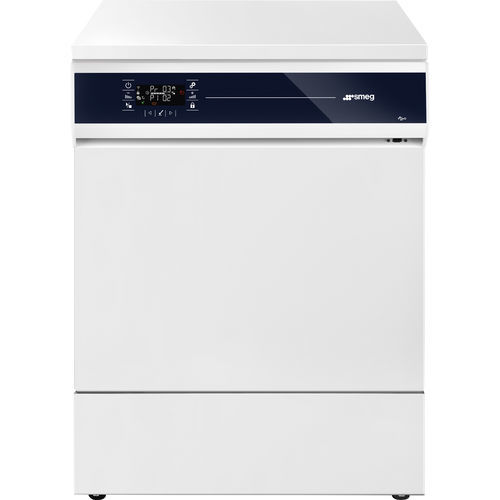

Washer-disinfector for the medical sector WD1260-DC-000
for instrumentsdentalundercounter

Washer-disinfector for the medical sector - WD1260-DC-000 - SMEG Instruments - for instruments / dental / undercounter
Washer-disinfector for the medical sector - WD1260-DC-000 - SMEG Instruments - for instruments / dental / undercounter
Washer-disinfector for the medical sector - WD1260-DC-000 - SMEG Instruments - for instruments / dental / undercounter - image - 2
Washer-disinfector for the medical sector - WD1260-DC-000 - SMEG Instruments - for instruments / dental / undercounter - image - 3
Washer-disinfector for the medical sector - WD1260-DC-000 - SMEG Instruments - for instruments / dental / undercounter - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for the medical sector, for instruments, dental
Configuration
undercounter
Loading
front-loading
Height

85 cm
(33.5 in)

Width

60 cm
(23.6 in)

Depth

60 cm
(23.6 in)

Description

Overview
  • Product: Thermal disinfector for professional use (Dental/medical science)
  • Model: WD1260-DC-000
  • Availability: Out of stock


Main details
  • Type: 60 cm thermal disinfector
  • Door: 1 hinged balanced stainless steel door
  • Wash chamber material: Stainless steel AISI 316L
  • DIN load capacity: up to 8
  • Medical device declaration: Yes


Intended use
  • Dental care sector: Washing room
  • Instruments solutions: Dental/medical science


Technical features
  • Operating temperature: Up to 95 °C
  • RS232: Optional
  • Installable under counter: Yes


Programs
  • Standard stored programs: 20
  • Modifiable programs: 20
  • Ability to modify programs: Yes


Electrical connection
  • Standard supply: 3N AC 400V - 50Hz
  • Conversion to single-phase: Yes
  • Single-phase version availability: Yes, optional
  • 60 Hz option: Yes, on request


Manuals and certifications
  • Medical device declaration: Yes
  • DMS reference: Version 02 - 26/06/2025


Interface and storage
  • USB port: Yes
  • Cycle storage: Yes
  • Cycle archive download: Optional via LAN port; Yes, with USB key
  • Diagnostics: Remote with optional; via software application
  • LAN port for network connection: Optional


Construction
  • Tank with guides: Yes
  • Wash chamber material: Stainless steel AISI 316L
  • External casing material: Stainless steel AISI 304


Equipment
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for liquid neutralizer dosing: Yes
  • Possibility to install additional peristaltic pump: Yes, max. 1
  • Peristaltic pump for disinfectant dosing: Optional
  • Peristaltic pump for lubricant dosing: Optional
  • Chemical dosing control: Standard
  • Built-in water softener: Yes
  • Vapor condenser: Yes


Logistics information
  • Product dimensions LxDxH (mm): 600 x 600 x 850


Additional information
  • Additional information: Lower and upper base trolleys included


Optional accessories (examples)
  • Various trolleys, baskets and optional washing solutions (e.g. CSK4B, CS1-1, CS2, CSK8B, ZCS1, ZCS2B, CPC1B, CSKDIN, CSMICRO1/2/3, D-SV, D-LCN2).


Technical characteristics / specifications
  • Type: 60 cm thermal disinfector
  • Door: 1 hinged balanced stainless steel door
  • Wash chamber material: Stainless steel AISI 316L
  • External casing: Stainless steel AISI 304
  • Maximum temperature: up to 95 °C
  • Load capacity (DIN): up to 8
  • Power supply: 3N AC 400V - 50Hz (single-phase conversion available)
  • Programs: 20 standard stored, 20 modifiable
  • Connectivity: USB port (standard), download via LAN optional, RS232 optional
  • Diagnostic functions: Remote with optional and via software
  • Dimensions (LxDxH): 600x600x850 mm
  • Included accessories: lower and upper base trolleys
