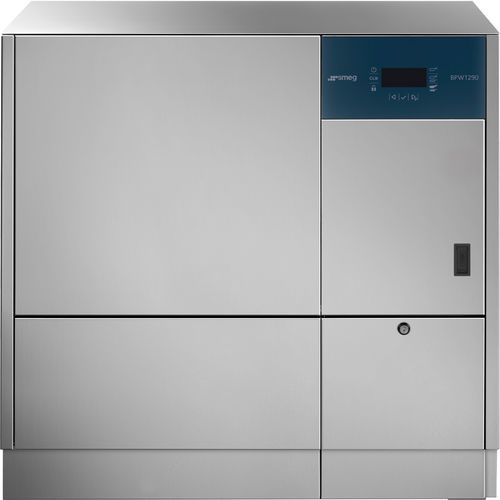

Recessed bedpan washer BPW1290JEK5automaticstainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- recessed
- Operation
- automatic
- Options
- stainless steel
- Width
860 mm
(34 in)- Depth
900 mm
(35 in)- Height
650 mm
(26 in)
Description
Description
Intended use
Aesthetics
Type
Technical characteristics
Programs
Baskets
Electrical connection
Hydraulic connection
Manuals and certifications
Interface
Construction
Equipment
Medical device regulation
Characteristics / technical specifications
- Automatic-opening stainless-steel bedpan washer designed for Health Care applications; medical device compliant with Regulation (EU) 2017/745 MDR (Annex IX) class IIa.
Intended use
- Health Care sector: care homes; inpatient wards
- Instrument solutions: Health Science
Aesthetics
- Colour: Stainless steel
Type
- Type: Automatic-opening bedpan washer
- Installable under counter: Yes
- Family: Bedpan washers
- Door opening/closing: Manual, tilting
Technical characteristics
- Washing capacity: 4 bedpans; 2 bedpans + 1 pan
- Door: 1 hinged steel door
- Emergency opening system: Yes
- Ceiling washer: Yes
- Sprayer rotation control: Yes
- HEPA filter: Optional
- Sound pressure level (dBA): <60 dBA
- Product dimensions (mm): 860x900x650
Programs
- Stored standard programs: Bedpans program; Standard pans program; Intensive pans program
- Stored ECO standard programs: Bedpans ECO; Pans ECO; Pans intensive ECO
- Programmable: Yes
- A0 adjustable: Yes, 60 - 600
Baskets
- Support type: 1 pan and 2 bedpans (R-1B2P)
Electrical connection
- Standard electrical connection: 400V 3N AC 50Hz
- Single-phase version available: Yes
- 60 Hz available: Yes, on request
- Plug: Cable with free terminals
Hydraulic connection
- Hot water connection with aquastop: Yes
- Cold water connection with aquastop: Yes
- Water stop: Yes
Manuals and certifications
- Medical device according to Regulation (EU) 2017/745 MDR (Annex IX) class IIa: Yes
- DMS reference: Version 02 - 21/04/2026
Interface
- Cycle storage: Yes
- Electronic control: Yes
- Remaining time display: Yes
- End-of-cycle indicator: Yes
- Cycle archive download: Yes, via USB stick
- Traceability: min. last 300 executed programs
- Display: LCD
- USB port: Yes
Construction
- External casing material: AISI 304
- Washing chamber material: AISI 304
Equipment
- Steam condenser: Yes
- Chemical dosing control: Standard for descaler
- Peristaltic pump for liquid detergent dosing: Optional
- Detergent level sensor: Standard
- Peristaltic pump for descaler dosing: Yes
Medical device regulation
- Medical device: Compliant with Regulation (EU) 2017/745 MDR (Annex IX) class IIa
Characteristics / technical specifications
- Model: BPW1290JEK5
- Type: Automatic-opening bedpan washer
- Capacity: 4 bedpans; 2 bedpans + 1 pan
- Door: 1 hinged steel door, manual tilting opening
- Emergency: Emergency opening system included
- Sprayers: Ceiling sprayer present; sprayer rotation control
- Filtration: HEPA filter optional
- Noise: <60 dBA
- Dimensions (WxDxH): 860 x 900 x 650 mm
- Power supply: 400V 3N AC 50Hz (single-phase available; 60 Hz on request)
- Water connections: Hot and cold with aquastop
- Materials: AISI 304 external casing and washing chamber
- Interface and traceability: LCD, USB port, cycle archive and traceability of at least last 300 programs
