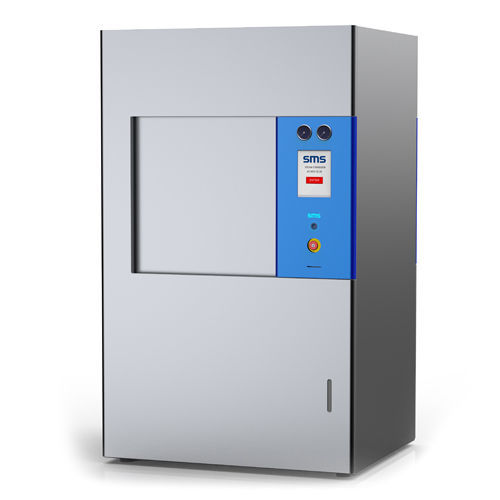

Medical sterilizer AS 66 series
CSSDsteamfloor-standing

medical sterilizer
medical sterilizer
Add to favorites
Compare this product


Characteristics

Application domain
medical, CSSD
Sterilization procedure
steam
Configuration
floor-standing, vertical
Function
automatic
Options
with touchscreen, with sliding door
Capacity

334 l, 459 l, 605 l, 756 l, 897 l (88.2 gal)

Height

1,190 mm (47 in)

Width

1,170 mm (46 in)

Depth

970 mm, 1,225 mm, 1,525 mm, 1,835 mm, 2,125 mm (38 in)

Description

The AS 66 steam sterilizer series is designed to be compatible with sterilization units (STU). As it is a widely used standard the AS 66 sterilizers are a perfect solution for CSSDs that want to comply with industry standards. Additionally it makes the AS 66 series an ideal choice for health care institutions looking to expand their CSSD that already use this standard. The 9,7” LCD color touch panel with an intuitive and easy-to-use control system lets the users to adjust all cycle parameters. A wide variety of screens can display the current sterilizer parameters allowing staff to monitor the ongoing cycle and sterilizer status. We offer the AS 66 series in a wide range of capacities, from 4 to 12 STU. If a second supplementary sterilizer with smaller capacity is needed, you can choose a steam sterilizer from the AS 44 or AS 366 series. single and double door versions integrated steam generator or the means to use steam from an external source automatic vertical sliding door cooling water saving system hand polished sterilization chamber the chamber, heating jacket and doors are made of AISI 316L stainless steel the housing is made of AISI 304 stainless steel piping made of non-corrosive materials 9,7” LCD color touch screen control panel 4 access levels with password protection full adjustment of process parameters 19 sterilization and 2 test programs (vacuum test, Bowie & Dick test) built-in dot matrix printer validation ports 1/1 STU sterilization basket – 580 x 280 x 260 mm 1/2 STU sterilization basket – 580 x 280 x 130 mm loading cart transport trolley an additional temperature sensor located inside the chamber (PT 100 sensor) HEPA exhaust filter
