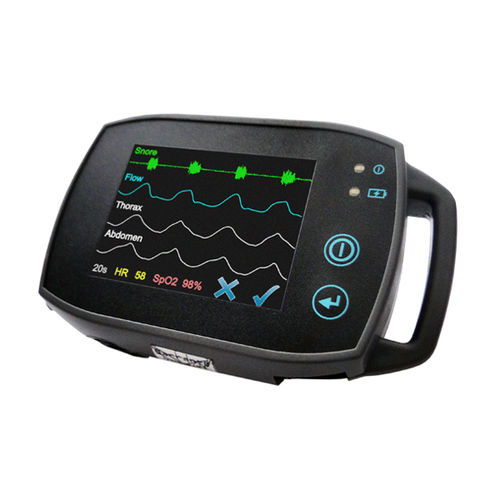

The SOMNOtouch™ RESP is the smallest full color touch screen Polygraphy device on the market today.
In addition to the standard signals for a screening (Flow & Snore, efforts, SpO2, pulse rate, plethysmogram, body position, CPAP/BiPAP pressure), the SOMNOtouch™ impresses with its standard integrated actigraphy sensor. On the basis of the body position and actigraphy, a detailed sleep-wake assessment can be made, so that it can be differentiated between sleep, wake and events.
The time in bed is determined by the patient via the interactive patient marker. Thanks to its color touchscreen and Intelligent Connect technology, the SOMNOtouch ™ RESP is easy and intuitive to use. Integrated sensors and the built-in Li-Ion battery keep the running costs per measurement low.
Pressure (Flow & Snore)
Effort (Thorax / Abdomen)
SpO2, Pulse rate
Movement (Sleep / Wake Determination)
CPAP/BiPAP – Pressure
Up to 16 additional channels can be connected via the two open auxiliary connectors, e.g. PLM, ECG, EEG, EOG, EMG.
Online signal check on a tablet, smartphone or PC
Docking Station for simplified handling
The docking station charges the Li-Ion battery of the SOMNOtouch ™ RESP and regularly loads free firmware updates. So your SOMNOtouch ™ RESP is always up to date.
The virtual docking station on the PC displays the current status of the device.
Data analysis and report
Optional Sensors and Analysis
Simplified, ambulatory sleep scoring with combi electrode (1 EEG, 2 EOG, ambient light)
Sleep scoring according to AASM (4 EEG, 2 EOG, 1 EMG)
Blood pressure determination (via Pulse Transit Time, PTT)
