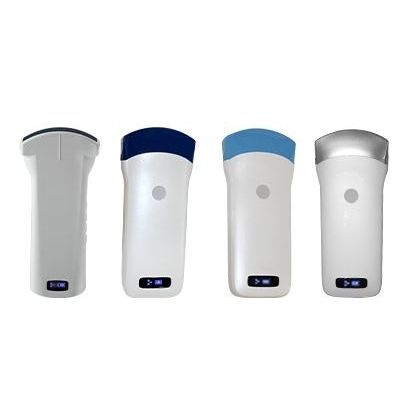

Hand-held ultrasound system
for gynecological and obstetric ultrasound imagingB/Wcolor doppler

hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
hand-held
Application
for gynecological and obstetric ultrasound imaging
Imaging modes
B/W, color doppler
Options
all-in-one probe, wireless probe
Probe type
microconvex-array
Probe frequency

3.5 MHz, 5 MHz

Weight

220 g, 250 g
(7.76 oz, 8.82 oz)

Length

156 mm
(6.1 in)

Height

20 mm
(0.8 in)

Depth

90 mm
(3.5 in)

Description

·Advanced digital imaging technology, clear image · High cost-effective ·Wireless connectivity, easy to operate ·Small and light,easy to carry ·Applicable in emergency, clinic, outdoor and vet inspection ·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing Color Doppler (White Head 192 Elements/Dark Blue 128 Elements). High Configuration B/W (Light Blue 128 Elements). Low Configuration B/W (Grey 80 Elements). The Sonostar wireless probe is a mini ultrasound scanner without a screen. We minimize the components of a traditional ultrasound into a small circuit board built into the probe, and showing image in smart phone/tablet through Wifi transferring. image can both show in screen and tablet.Image transferring through internal wifi from probe, no need external Wifi signal -Scanning mode: Electronic array -Display mode: B, B/M, color doppler version with B+Color, B+PDI, B+PW -Probe element: 80/128/192 -Channel of RF circuit board: 16/32/64 -Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF -Cineplay: auto and manual, frames can set as 100/200/500/1000 -Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement. -Measure: Length, Area, Angle, heart rate, Obstetrics -Image save: jpg, avi and DICOM format -Image frame rate: 18 frames / second
