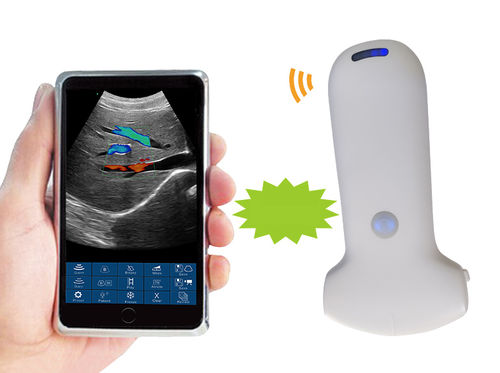

Hand-held ultrasound system PalmUSfor multipurpose ultrasound imagingcolor dopplerwireless probe
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Application
- for multipurpose ultrasound imaging
- Imaging modes
- color doppler
- Options
- wireless probe
- Probe type
- convex-array
- Probe frequency
3.2 MHz, 5 MHz
- Weight
180 g
(6.35 oz)- Length
156 mm
(6.1 in)- Height
60 mm
(2.4 in)- Depth
20 mm
(0.8 in)
Description
8C convex palm doppler ultrasound
wireless probe type color doppler ultrasound scanner, 64 channel, 192 element
• Scan mode: Electronic R60 Convex array scanning
• Channel: 64
• Elements: 192 elements
• Frequency: Convex probe 3.2/5.0MHz
• Scanning Depth: Convex 90-300mm, adjustable
• Scan Angle: 45°
• Screen: Smart phone or tablet screen
• Supporting system: iOS, Android, Windows
• Display mode: B, B/M, Color, PDI, PW
• Image gray scale: 256 level
• Noise reduction: 0-1-2-3-4
• Gain: 30db-105db
• Dynamic Range: 40/50/60/70/80/90/100/110
• Image/Video Storage: Store on mobile phones, Tablet PC
• Measure: distance, area, obstetrics and other
• Power: by built-in lithium battery, 4200mAh
• Battery working time: 3 hours
• Size: 156mm×60mm×20mm
• Net Weight: 180 gram
