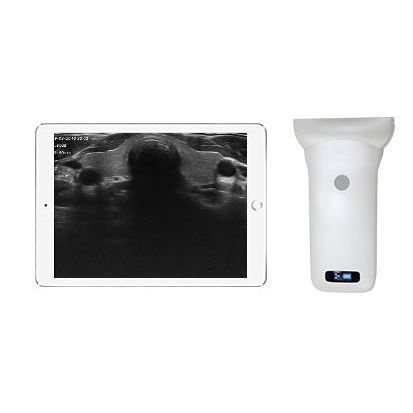

Hand-held ultrasound system for multipurpose ultrasound imagingB/Wcolor doppler
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Application
- for multipurpose ultrasound imaging
- Imaging modes
- B/W, color doppler
- Options
- all-in-one probe, wireless probe
- Probe type
- linear-array
- Probe frequency
7.5 MHz, 10 MHz
- Weight
220 g
(7.76 oz)- Length
156 mm
(6.1 in)- Height
20 mm
(0.8 in)- Depth
20 mm, 40 mm, 60 mm, 100 mm
(0.8 in, 1.6 in, 2.4 in, 3.9 in)
Description
- Scanning mode: Electronic array
- Display mode: B, B/M, B+Color, B+PDI, B+PW
- Channel of RF circuit board: 16/32/64
- Probe frequency: 7.5MHz/10MHz
- Probe element: 256
- Probe head width: 80mm
- Scan depth: 20/40/60/100mm
- Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
- Cineplay: auto and manual, frames can set as 100/200/500/1000
- Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
- Measure: Length, Area, Angle, heart rate, Obstetrics
- Image save: jpg, avi and DICOM format
- Image frame rate: 18 frames / second
- Battery working time: 3~5 hours(according to different probe and whether keep scan)
- Battery charge: by USB charge or wireless charge, take 2 hours
- Dimension: 156×60×20mm
- Weight: 220g
- Wifi type: 802.11g/20MHz/5G/450Mbps
- Working system: Apple iOS and Android, Windows
