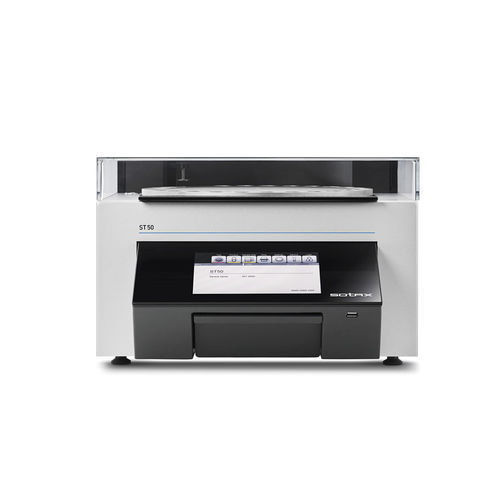

Laboratory hardness tester ST50

for the pharmaceutical industry

Summary Fast, efficient and precise – the ST50 sets new standards for testing five physical parameters of virtually all tablet shapes. The unit can be connected with q-doc® PC software for 21 CFR, Part 11 compliant electronic data management. User-friendly operation paired with robust design make the ST50 suitable for R&D, QC and in‑process control (IPC) laboratories.

Benefits

• Measuring of 5 parameters: Hardness; Length / Diameter; Width; Thickness; Weight / Mass
• Patented SmartAlign™ system for reliable tablet orientation and high‑precision measuring
• Intuitive icon‑based EasyTouch™ control with user administration
• Configurable test reports and various printer interfaces including export of test results to USB flash drive
• Video monitoring for automatic recording of the tablet orientation during measuring (optional)
• Advanced qualification with the DQD™ Dynamic Qualification Device

Reliable tablet orientation with SmartAlign™
The ST50 reliably handles round, oblong and oval tablet shapes as standard without requiring modifications or special options. The patented SmartAlign™ system, combined with SmartLift™ technology, ensures precise tablet orientation and accurate measurements. The ST50 can be fitted with a custom carousel for special applications.

Intuitive and user‑friendly with EasyTouch™
Icon‑based navigation and logical menu structures with intelligent operator assistance provide fast test setup, short training time and error‑free data entry. Available in more than 10 languages and featuring complete user administration with different access levels.

Video monitoring
The ST50 can be optionally fitted with video monitoring to automatically record the tablet orientation during measuring. A separate video clip is created for each sample and saved as a standard video file including tablet ID# and time stamp to support OOS investigations and analysis of breaking characteristics.

Configurable reporting
The ST50 offers two configurable test protocol templates that can be adapted to individual requirements – from comprehensive reports with graphics to basic reporting formats. Test protocols are automatically printed or exported at the end of a test run. Additional reports, e.g. calibration reports, are also available.

Data management the SmartWay™
Network the ST50 without requiring a PC beside the tester. Test runs can be routed to one or multiple instruments as needed; completed runs are forwarded to q-doc® data management software for central handling. Integration with q-doc® enables consolidated batch reports across multiple physical tests.

Advanced qualification
Using a fully traceable and certified high‑precision load cell, the entire hardness range can be qualified with the DQD™ Dynamic Qualification Device. Automated routines allow adjustment and verification of multiple points without static reference weights. Static verification is also possible with the patented SmartCal™ system.

Caractéristiques / spécifications techniques

• Measured parameters: Hardness; Length / Diameter; Width; Thickness; Weight / Mass
• Tablet handling: round, oblong, oval shapes as standard; custom carousel possible for special shapes
• Orientation: Patented SmartAlign™ combined with SmartLift™
• User interface: EasyTouch™ icon‑based control; multi‑language (>10) support; user administration with access levels
• Reporting: Two configurable test protocol templates; printable reports; export to USB flash drive
• Data management: Compatible with q-doc® PC software; SmartWay™ network capability
• Video: Optional video monitoring creating one clip per sample with tablet ID and timestamp
• Qualification: DQD™ Dynamic Qualification Device for automated range qualification; SmartCal™ static qualification option
• Advanced features: Optimized jaw movements and short cycle times for high throughput
