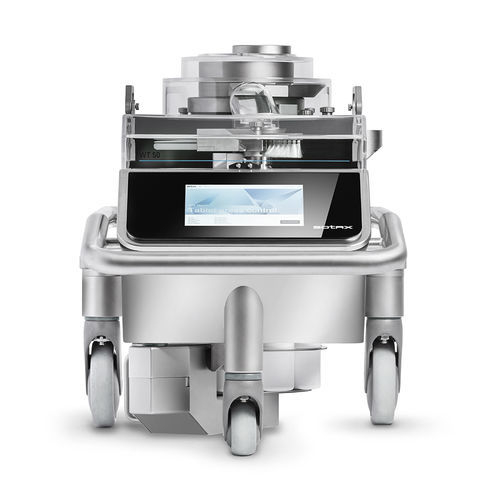

Centrifugal checkweigher WT50

pneumaticautomaticvibration

Overview
The WT50 is an online weight tester designed for fully integrated, automated weighing with tablet presses. It performs unattended weight checks at regular intervals, reliably measures individual sample weights and transfers results to the tablet press for automated self-adjustment in real time. Weight testing supports in-process control (IPC) during tablet compression or capsule filling and helps ensure manufacturing quality and compliance with pharmacopeial guidance such as USP 41 and USP 1251.

Operation
Prevent potential manufacturing problems caused by weight drift without any operator required inside the compression room. Once a campaign is started, samples are automatically diverted to the weight tester at regular time intervals. The WT50 can be configured for gravity feeding directly under the sampling gate or for venturi feeding when positioned at a distance from the press.

Benefits

• ONLINE - Integration with different brands of tablet presses for automated self-adjustment
• COMPACT - Small footprint suitable for compression room installation
• FEEDING - Low inlet height enables gravity feeding directly below the sampling gate
• OPTIONS - Modular design allows configuration for specific integration requirements
• ACCURATE - Vibration-resistant, high-precision weighing module with elevated platform and programmable cleaning intervals
• CALIBRATION - User-guided adjustment and verification procedures with printable report
• MINIMUM WEIGHT - Automated on-site determination of minimum weight in accordance with USP guidance

Integration Options
The WT50 supports multiple inlet types and configurations to link to single-side or double-sided tablet presses. Options include direct gravity feed and venturi feed; braking cyclone/venturi solutions are available for transfer from one or two press outlets. A sliding damper closes during testing to protect measurements from negative air pressure influences caused by the linked press.

Highlights & Key Features

• Online Integration: seamless connection with different tablet press brands; suitable for single- and double-sided presses
• Universal high-speed separator: reliably feeds individual samples of various shapes and sizes without adjustments
• Sliding damper: prevents negative air pressure from the connected press from affecting measurements
• Elevated weighing platform with integrated cleaning: reduces erroneous readings from debris and supports programmable cleaning intervals
• Vibration-resistant high-precision weighing module: fast and accurate measurements in compression-room environments
• Sample collector: space-saving collector beneath the tester for laboratory or future testing; supports double-sided and bulk collection modes
• Automated minimum weight procedure: built-in routine to determine system minimum weight on site, with detailed printable or USB-transferable report

Typical Applications
In-process control during tablet compression and capsule filling, weight checks throughout production for tablets and capsules, unattended online weight monitoring and automated press adjustment to maintain product quality.

Technical specifications

• Model: WT50 (online weight tester for tablet presses)
• Integration: interfaces for automatic communication with tablet presses for self-adjustment
• Feeding modes: gravity feeding (low inlet height) and venturi feeding (for remote positioning)
• Separator: universal high-speed separator for single-sample feeding; handles a wide range of shapes and sizes
• Weighing module: vibration-resistant, high-precision module with elevated platform
• Cleaning: programmable integrated cleaning intervals for the weighing platform
• Environmental protection for weighing: sliding damper to eliminate negative air pressure effects during testing
• Sample handling: built-in sample collector with modes for double-sided presses and bulk collection
• Calibration & verification: user-guided adjustment and verification procedures with printable reports
• Minimum weight: automated on-site determination according to USP guidance with report output to printer or USB
• Design: compact construction with minimal footprint for compression room installation
• Modularity: configurable options to match specific press integration requirements
