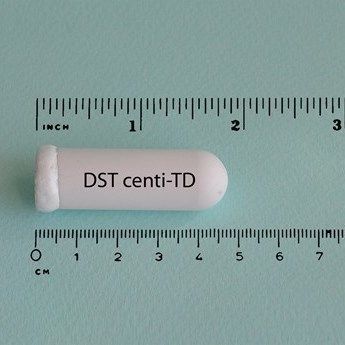

Temperature data logger DST centi-TD

pressuredepthfor animal research

Product Details High performing data storage tag with long battery life and high pressure tolerance. DST centi-TD is a long-life and reliable temperature and depth data storage tag, well suited for long term behavior and migration studies of fish and marine animals. This long life data storage tag can store up to 524,000 measurements in total with time stamp for each measurement. Batteries storing at 10 minute interval can last up to 9 years. Size: 46 mm x 15 mm; Weight: 19 grams. Possible to set the tag to shift between different recording intervals within the measuring period. Application Designed for migration, dive and feeding behavioral studies of fish and marine animals. Enables scientists to gain valuable information on migration routes and behavioural patterns over a long period of time. Can be implanted or attached externally. Depth sensors from shallow to deep water Can be calibrated to 3,000 meters, with tolerance up to 3,500 meters. Available ranges: 50m, 100m, 270m, 800m, 1500m, 3000m. Fish implantation or external attachment Designed as an implantable tag for the abdominal cavity or for external attachment using a tag holder kit. User defined text on housing for recapture purposes Tags can have customized text for recapture purposes, especially for commercially fished species. Spaghetti tag for spotting fish Yellow plastic tube (spaghetti tag) can be attached to make tagged fish easier to spot. Using the logger Designed for ease of use from setup to data retrieval. Supported by SeaStar software and Communication Box (purchased separately). Logger is programmed via Communication Box connected to PC; user sets start time, date, and sampling interval. Supports single or multiple intervals (up to 7 different intervals). Software calculates memory fill and battery consumption based on settings. After recapture, data is uploaded to software and can be exported; time series data includes time stamps. Tag can be reused as long as battery lasts; battery life estimation is reported upon connection. Accessories Communication Box: Interface between DST and PC for starting logger and retrieving data. SeaStar software: For Windows, displays data in graph and table, exportable to other programs. Plate Holder Kit: For external attachment, includes wire fasteners, plastic plates, silicone pads. Capsule Holder Kit: Plastic capsule with holes for water flow, wire harness, plastic plate, silicone pads. Floating Device: For internal/external tagging, can be coated or painted for visibility. Documentation Migration & Behavior leaflet available for download. Characteristics / Technical Specifications Sensors: Temperature and pressure (depth) Size (Diameter x Length): 15mm x 46mm*** Maximum Diameter: 18mm at the closure end Housing Material: Biocompatible alumina (Ceramic) Weight (in Air/in Water): 19g/12g Data Resolution: 12 bits Temperature Range: -2°C to +40°C (28°F to 104°F) Temperature Resolution: 0.032°C (0.058°F) Temperature Accuracy: +/-0.1°C (0.18°F) Temperature Response Time: Time constant (63%) reached in 20 sec. Standard Depth Ranges: 50m, 100m, 270m, 800m, 1500m, 3000m Depth Resolution: 0.03% of selected range Depth Accuracy: +/- 1% of selected range Depth Response Time: Immediate Memory Type: Non-volatile EEPROM Memory Capacity: 174,000 measurements in total* Memory Increase Option: 524,068 measurements in total* Measurement Interval: User specified in second(s), minute(s), or hour(s) Minimum Measurement Interval: 0.1 second Burst Measuring Option: 10 Hz Multiple Intervals Option: Up to 7 different intervals Measurement Options (Primary/Secondary): Temperature as primary, pressure/depth as primary Data Retention: 25 years Clock: Real time clock. Accuracy +/-1 min/month. Communications: Communication Box, wireless transmission when DST sits in the box. Connection to PC: USB cable. Attachment Hole: 0.9 mm (diameter) Battery Life: 9 years** Replaceable Battery: No * Total memory is divided between the two sensors. ** For sampling interval of 10 minutes; temperature and pressure recorded simultaneously.*** Length for DST centi-TD 1500m and 3000m is 50mmWarranty: 12 months.Specifications may change without notice.
