Urine drainage catheter SMD 51 series

urologicalballoondouble-lumen

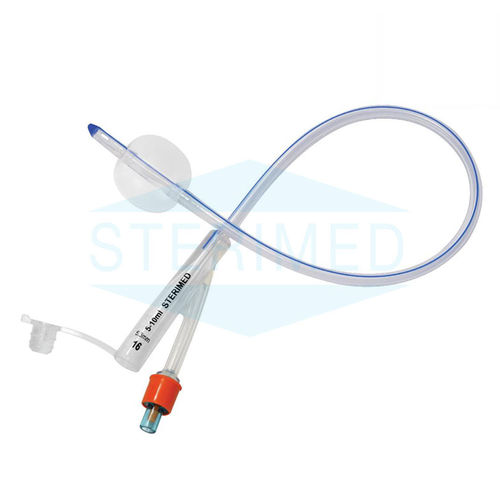

Silicone Foley Balloon Catheter — Medical-grade silicone for urinary drainage
Our silicone Foley catheter is manufactured in medical-grade silicone to provide low-friction insertion, a tear-resistant balloon and reliable drainage for clinical and homecare use.

Key features

• Flow control clamp: Enables controlled bladder emptying to support bladder training and patient mobility.
• Self-lubricated shaft: Low-friction silicone surface reduces trauma during insertion and removal.
• Tear-resistant balloon: Elastic silicone balloon available in multiple capacities for secure retention.
• Optional use without urine bag: Configurable setup to increase patient mobility when no external bag is required.

Clinical benefits

• Comfort-oriented design: Smooth lumen and soft material suitable for long-term catheterization.
• Durable and biocompatible: Medical-grade, non-toxic silicone with high tear resistance.
• Suitable for hospital and home: Compatible with clinical workflows and homecare protocols for short-term and long-term drainage.

Applications

• Post-surgical drainage: Safe urinary drainage after operative procedures.
• Long-term catheterization: Designed for extended indwelling use with reduced need for frequent replacement.
• Trauma-reduced insertion and removal: Self-lubrication and smooth finish minimize patient discomfort.

Product documentation
Technical brochure and Instructions for Use (IFU) available as downloadable PDF files.

Packaging

• Sterile, individually packed in peelable pouch.
• Box of 10.
• Master cartons: 200, 400 & 600 pieces.

Packaging — Weights & Dimensions
Gross: 6.7 kg (200 pcs, 16 FR)
Gross: 12.8 kg (400 pcs, 16 FR)
Gross: 19.7 kg (600 pcs, 16 FR)
Carton dimensions (200 pcs): 533 x 431 x 254 mm
Carton dimensions (400 pcs): 550 x 330 x 535 mm
Carton dimensions (600 pcs): 555 x 503 x 555 mm

Sizes
Two-way and three-way configurations available.

Sizes table (summary)
TWO WAY | THREE WAY
-- FG size vs Balloon capacity --
FG: 6 — Balloon capacity: 1.5 cc
FG: 8 — Balloon capacity: 3 cc
FG: 10 — Balloon capacity: 3–5 cc
FG: 12–30 — Balloon capacity: 5–10 cc (for two-way FG 12–30 and for three-way sizes 16–30 balloon 30 cc)
Note: 15 cc & 30 cc balloon capacity can also be provided on demand for sizes 16–24 FR in two-way catheters.

Available FG sizes (range)
6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26

Colour coding by FG
6 FG: Light Blue
8 FG: Black
10 FG: Grey
12 FG: White
14 FG: Green
16 FG: Orange
18 FG: Red
20 FG: Yellow
22 FG: Violet
24 FG: Blue
26 FG: Pink

FAQs (selected)

• Q: What sizes are available? A: A broad range of sizes is offered to cover pediatric and adult needs (see sizes list).
• Q: Is the silicone catheter suitable for long-term use? A: Yes — designed for extended indwelling use with low-friction surfaces and high tear resistance.
• Q: How does the flow control clamp improve experience? A: It allows controlled bladder emptying and can reduce dependence on a urine bag, improving mobility.

Technical specifications

• Material: Medical-grade silicone (biocompatible, non-toxic).
• Design: Two-way and three-way configurations; smooth, low-friction shaft for trauma-free insertion/removal.
• Balloon: Tear-resistant, elastic silicone balloon; standard capacities: 1.5 cc, 3 cc, 3–5 cc, 5–10 cc, optional 15 cc and 30 cc for specified sizes.
• Flow control clamp: Integrated or optional clamp to support bladder training and mobility.
• Packaging: Sterile, individual peelable pouches; box of 10; master cartons: 200, 400, 600.
• Available FG sizes: 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26.
• Colour coding corresponds to FG size as listed above.
• Applications: Post-surgical drainage, long-term catheterization, clinical and homecare use.
• Documents: Product brochure and IFU in PDF format.
