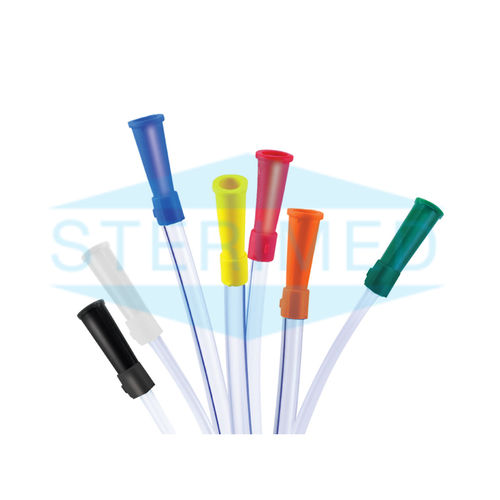

Drainage catheter SMD 502

urethralNelaton tipfemale

Overview

• SMD 502
• Single-use Nelaton urethral catheter for temporary urinary drainage
• Made from non-toxic, non-irritant medical grade PVC
• Radio-opaque line along the catheter for X-ray visualization
• Distal end with lateral eyes; proximal funnel connector for secure and easy attachment to urine collection systems

Packaging

• Sterile, individually packed in peelable blister packs
• Box quantity: 100 units; Master carton: 1000 units
• Packing gross weight: 14.2 kg (example for FG 14)
• Box dimensions: 680 x 305 x 630 mm

Sizes
VERSION | EFFECTIVE LENGTH | TOTAL LENGTH
Male | 370 mm | 400 mm
Female | 170 mm | 200 mm

Available FG sizes: 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24

Colour code mapping: FG 5 - Grey; FG 6 - Green; FG 8 - Blue; FG 10 - Black; FG 12 - White; FG 14 - Green; FG 16 - Orange; FG 18 - Red; FG 20 - Yellow; FG 22 - Violet; FG 24 - Blue

Documents

• Product catalogue and Instructions for Use (IFU) available as PDF (product-specific documents)

Technical specifications

• Single-use Nelaton / urethral catheter
• Material: Medical grade PVC, non-toxic and non-irritant
• Radio-opaque line along catheter for X-ray visualization
• Distal end: lateral eyes for drainage
• Proximal end: funnel connector for easy urine bag connection and optimal drainage
• Available versions: Male (effective length 370 mm, total length 400 mm) and Female (effective length 170 mm, total length 200 mm)
• FG sizes available: 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24
• Colour coding provided per FG size
• Packaging: sterile, peelable blister packs; box of 100; master carton of 1000
• Packing gross weight and dimensions: Gross 14.2 kg (for FG 14); box dimensions 680 x 305 x 630 mm
