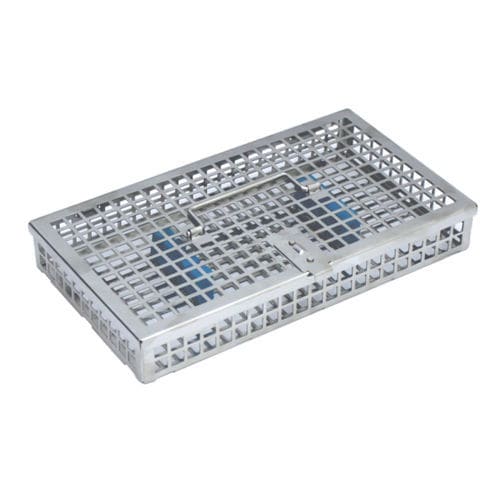

Endoscope sterilization basket ECT-40 series

for instrumentsperforatedsilicone

Item Name Endoscopic baskets

Item Description Designed for storage, washing and sterilization of delicate endoscopic and microsurgery instruments. Intended for use with silicone insert systems to prevent metal-to-metal contact, reduce risk of damage and facilitate safe reprocessing. Perforated sidewalls allow permeation of ethylene oxide during sterilization. Options include electropolished finishing to optimize cleanliness and corrosion resistance.

Uses For organizing, protecting and sterilizing endoscopic instruments during transport and reprocessing workflows; compatible with silicone trays and washer-sterilizer systems to prevent instrument contact and abrasion.

Features

• Mesh/opening size: 5.5 × 5.5 × 1.2 mm
• Mesh type: Spotted
• Sheet material: 304 (ASTM)
• Material: 304 (ASTM) medical-grade stainless steel
• Surface finish options: mirror, luster, satin, brushed, colored
• Cutting method: laser cut
• Stackable: all trays designed to be stackable

Available sizes
ECT-4011 - 290 × 80 × 42 mm
ECT-4012 - 290 × 80 × 52 mm
ECT-4021 - 290 × 160 × 42 mm
ECT-4031 - 450 × 80 × 42 mm

Technical specifications

• Model codes: ECT-4011, ECT-4012, ECT-4021, ECT-4031
• Material: 304 (ASTM) medical-grade stainless steel
• Mesh type: spotted
• Mesh/opening size: 5.5 × 5.5 × 1.2 mm
• Surface finish options: mirror, luster, satin, brushed, colored
• Manufacturing: laser cut; electropolish finishing option
• Perforated sidewalls for ethylene oxide (EO) permeation during sterilization
• All trays designed to be stackable
