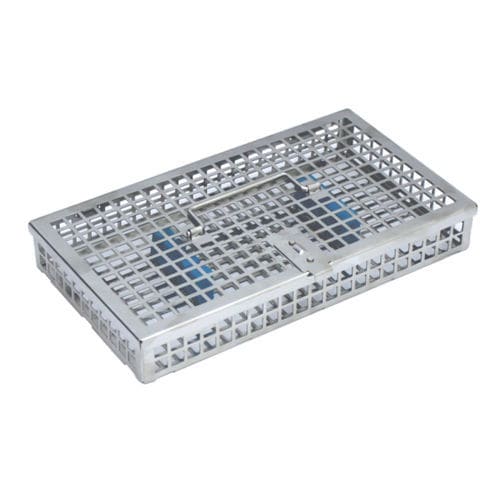

Surgical instrument sterilization basket ECT-40 series

for endoscopessiliconeperforated

Overview
Endoscopic baskets for reprocessing and sterilization of delicate endoscopic and microsurgery instruments. Perforated construction enables sterilant permeation while silicone protections prevent metal-to-metal contact and protect instrument integrity.

Uses
Designed to hold and protect delicate endoscopic and microsurgery instruments during cleaning, disinfection and sterilization cycles. Recommended use with silicone instrument supports or trays to eliminate direct metal contact and to facilitate washer-disinfector and ethylene oxide sterilization.

Features

• Silicone protection to eliminate metal-to-metal contact
• Burr-free finish
• Lock clip for secure closure
• Electropolished surface option
• Mesh type: Spotted/perforated mesh
• Sheet: 304 (ASTM)
• Material: 304 (ASTM) stainless steel
• Surface finish options: mirror, luster, satin, brushed, colored
• Cutting: Laser cut
• Stackable design
• Perforated sidewalls for sterilant permeation
• Mesh size: 5.5 × 5.5 × 1.2 mm

Sizes / Variants
ECT-4011 | 290 × 80 × 42 mm
ECT-4012 | 290 × 80 × 52 mm
ECT-4021 | 290 × 160 × 42 mm
ECT-4031 | 450 × 80 × 42 mm

Technical specifications

• Product type: Endoscopic sterilization basket
• Model / Reference: ECT-4011 (one of the variant codes)
• Material: 304 (ASTM) stainless steel
• Mesh type: Spotted/perforated mesh
• Mesh size / feature: 5.5 × 5.5 × 1.2 mm
• Surface finishes available: mirror, luster, satin, brushed, colored
• Manufacturing: Laser cut
• Finish treatment: Electropolished option
• Design: Perforated sidewalls to allow sterilant permeation (e.g., ethylene oxide)
• Stackable: Yes
