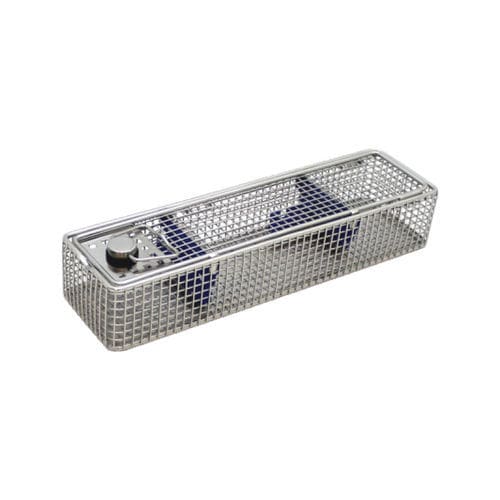

Endoscope sterilization tray SEB-4010

for instrumentsfor surgical instrumentsstainless steel

Product name
Endoscopic instrument baskets SEB-4010

Description
Designed to protect delicate microsurgery and endoscopic instruments during cleaning and sterilization. Baskets are supplied with options for silicone protection inserts to eliminate metal-to-metal contact. Perforated sidewalls permit sterilant penetration (including ethylene oxide) and support reprocessing of contaminated flexible endoscopes. Electropolished finish and burr-free edges are available to reduce instrument wear.

Features

• Mesh type: spotted
• Mesh / hole size: 5.5 x 5.5 x 1.2 mm
• Sheet: 304 (ASTM)
• Material: 304 (ASTM) stainless steel
• Surface finish options: mirror, luster, satin, brushed, colored
• Cutting method: laser cut
• Stackable: all trays are stackable
• Electropolish option and burr-free edges

Available sizes / models

• SEB-4010 — 290 x 80 x 52 mm
• SEB-4020 — 290 x 160 x 52 mm
• SEB-4030 — 460 x 80 x 52 mm
• SEB-4040 — 460 x 160 x 77 mm
• SEB-4050 — 640 x 150 x 77 mm
• SEB-4060 — 670 x 80 x 52 mm
• SEB-4070 — 700 x 80 x 52 mm
• SEB-4080 — 660 x 150 x 77 mm
• SEB-4110 — 460 x 160 x 52 mm
• SEB-4120 — 310 x 150 x 77 mm
• SEB-4130 — 580 x 160 x 52 mm

Usage notes
Intended to protect instruments during washing and sterilization while permitting effective sterilant permeation. Use with silicone inserts or sleeves to avoid metal-to-metal contact. Compatible with ethylene oxide sterilization and standard reprocessing cycles; follow facility sterilization protocols.

Technical specifications

• Model: SEB-4010
• Primary model dimensions (SEB-4010): 290 x 80 x 52 mm
• Material: 304 (ASTM) stainless steel
• Mesh type: spotted mesh — hole size 5.5 x 5.5 x 1.2 mm
• Surface finishes available: mirror, luster, satin, brushed, colored
• Manufacturing: laser cut; electropolished finish option
• Design: perforated sidewalls for sterilant permeation; stackable trays
