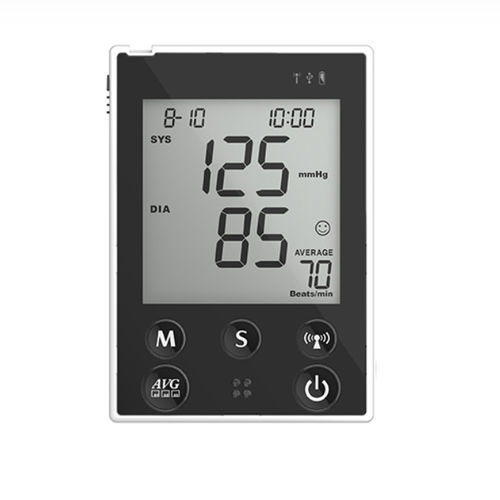

Cuff-mounted blood pressure monitor TD-3261

automaticwith rechargeable batterywith blood glucose meter

Overview
The TD-3261 is a 2-in-1 4G/NB‑IoT medical device combining blood pressure and blood glucose monitoring to support remote patient monitoring and secure automatic data transmission for telehealth and clinical workflows.

Key features

• Dual function: Blood Pressure (BP) + Blood Glucose (BG)
• Glucose enzyme: GOD
• Sample size: 0.5 μL
• Glucose reaction time: 5 seconds
• Glucose measurement range: 20–600 mg/dL (1.1–33.3 mmol/L)
• Communication: 4G / NB-IoT (TD-3261G)
• Smart auto-cycling function for BP
• Memory capacity: up to 864 records

Companion App
Free Healthy Check app (iOS and Android) available to sync measurements, review trends and export data for remote monitoring and clinician review.

Specifications (table)
Power source: Rechargeable Li-Ion battery and External DC 6V
Memory capacity: Maximum 864 records
Communication: 4G (TD-3261G) / NB-IoT option
Power saving: 180 seconds
Monitor size without cuff: 147 mm (L) x 105 mm (W) x 80 mm (H); Weight: 500 g (including battery)
Operating conditions: 10°C – 40°C

BLOOD GLUCOSE MONITOR
Enzyme type: GOD
Sample size / Reaction time: 0.5 μL / 5 seconds
Measurement range: 20 – 600 mg/dL (1.1 – 33.3 mmol/L)
Hematocrit range: 20% – 60%
Precision: SD < 5 mg/dL at < 100 mg/dL; CV < 5% at 100 mg/dL (5.55 mmol/L)
Accuracy: ±15 mg/dL if ≤ 100 mg/dL; ±15% if > 100 mg/dL
Ketone warning: Yes

BLOOD PRESSURE MONITOR
Pressure accuracy: ±3 mmHg or ±2% of reading
Heart rate accuracy: ±4% of reading
Measurement range: Systolic 60–250 mmHg / Diastolic 30–180 mmHg / Pulse rate 40–199 per minute
Units per carton: 12
Gross weight per carton: 12 kg
Carton size: 43.3 (L) x 37.8 (W) x 36.5 (H) cm

Accessories

• Medium Cuff (CF3312): for upper arm circumference 24–35 cm
• Wide-Range Cuff (CF3314): for upper arm circumference 24–43 cm

Technical specifications

• Model: TD-3261
• Function: Combined Blood Pressure + Blood Glucose measurement
• Communication: 4G / NB-IoT (TD-3261G)
• Power source: Rechargeable Li-Ion battery; External DC 6V
• Memory: Up to 864 records
• Capillary sample: 0.5 μL
• Glucose reaction time: 5 seconds
• Glucose range: 20–600 mg/dL (1.1–33.3 mmol/L)
• Glucose enzyme: GOD
• Glucose precision: SD < 5 mg/dL at <100 mg/dL; CV < 5% at 100 mg/dL
• Glucose accuracy: ±15 mg/dL (≤100 mg/dL) / ±15% (>100 mg/dL)
• Hematocrit range: 20%–60%
• Ketone alert: Yes
• BP accuracy: ±3 mmHg or ±2% of reading
• Heart rate accuracy: ±4% of reading
• BP range: Systolic 60–250 mmHg; Diastolic 30–180 mmHg
• Dimensions (without cuff): 147 × 105 × 80 mm; Weight: 500 g (with battery)
• Operating conditions: 10°C – 40°C
• Accessories: CF3312 (Medium cuff), CF3314 (Wide-range cuff)
• Mobile app: Healthy Check (sync and trend monitoring)
