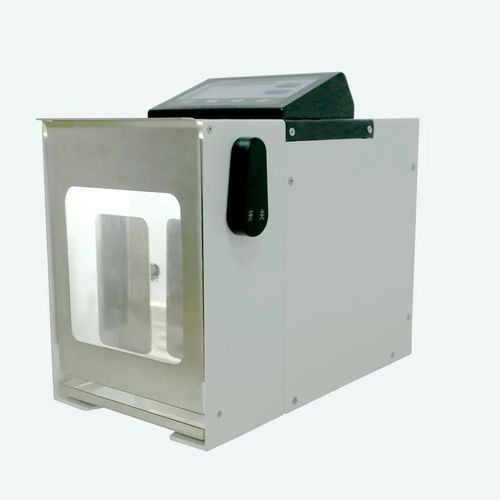

Benchtop homogenizer HTY-BM02

for the pharmaceutical industrysample preparationfor research

Product Overview

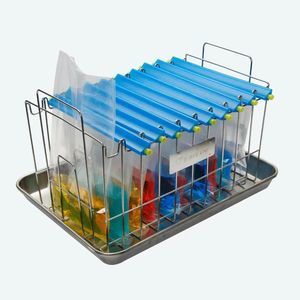

The Laboratory Bag Homogenizer is designed for non-contact sample pre-treatment in microbial limit testing for pharmaceuticals, food and related research. Samples are placed in sterile bags, sterile diluent is added, and homogenisation is performed by external slap plates to extract microorganisms without direct contact with the sample. Tailin supplies the homogenizer together with compatible sterile bags and stainless steel bag stands for complete workflow integration.

Key Features

• Color LCD for clear parameter display and status monitoring.
• Programmable settings: blend speed, blend time, sterilisation time and heating temperature.
• Adjustable blending force; slap plates stop side-by-side after shutdown to prevent sample contact.
• Internal homogenising chamber lighting and built-in sterilisation function.
• Safety interlock: automatic stop and sterilisation cycle on door opening.
• Full-opening door and removable slap plates for easy cleaning; non-contact operation prevents leakage.
• Built-in drip tray to contain leaks and spills.
• Painted steel exterior for industrial durability.
• Optional heating function to support temperature-controlled processing.
• Single-pane observation window for process visibility.

Applications
Designed for homogenising solid pharmaceuticals, fruits and other samples prior to microbial limit tests, the bag homogenizer simplifies sample preparation, reduces cross-contamination risk and lowers labour needs. Typical sectors: Pharmaceuticals, Food & Beverage, Quality Control Laboratories and Scientific Research.

Technical specifications

• Capacity: 50–400 mL
• Timing: 1 second – 1 hour or continuous run
• Power supply: AC 220V / 50Hz
• Blend speed: 1–12 times/second (slap plate)
• Material: Stainless steel
• Power: ≤ 480 W
• Dimensions: 44.5 x 24.0 x 36.0 cm
• Net weight (N.W.): 26.0 kg
