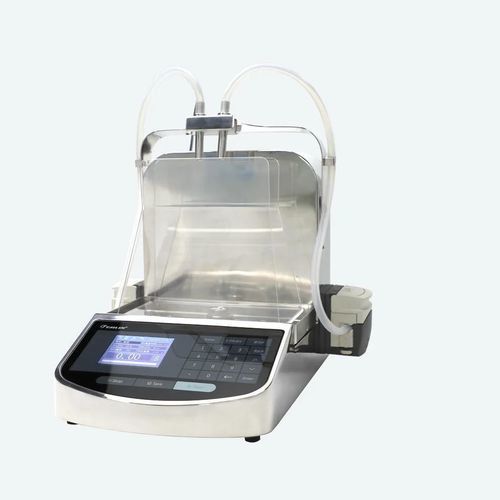

Gravimetric dilutor HTY-ADS01

automaticmedicinelaboratory

Introduction
The HTY-ADS01 is an automated gravimetric diluter for laboratory and production quality control. Place the sample in a homogenization bag, record the weight and the instrument executes fast, proportional dilution using a high-precision load cell and peristaltic pumping.

Features

• Large LCD display for clear parameter viewing.
• Tempered glass touch panel for intuitive operation.
• Numeric keypad for quick input of dilution parameters.
• High-performance load cell ensures precise weighing and stable control.
• High-quality peristaltic pump provides smooth, accurate and repeatable dispensing.
• Automatic dilution workflows with configurable dilution factor (1–999).
• Password-based user management and data storage with query capability.
• Built-in calibration routine to maintain measurement accuracy.

Applications

• Pharmaceuticals
• Food & Beverage
• Scientific research laboratories

Technical specifications

• Weighing range: 0-1000 g
• Max. weighing without bag opener: 0-2000 g
• Net weight: 13 kg
• Weight resolution: 0.1 g
• Dilution factor: 1-999
• Connections: RS232 printer / JACK1 hand gun / JACK2 foot switch
• Dilution accuracy: ≥98%
• Dilution time: <15 s (25 g sample at 10×)
• Distribution modes: proportional / by weight / hand gun
• Power supply: AC220V / 50Hz
• Dimensions: 38.0 x 24.0 x 28.0 cm
• Pump selection: pump A / pump B / AB same liquid / AB different liquid
