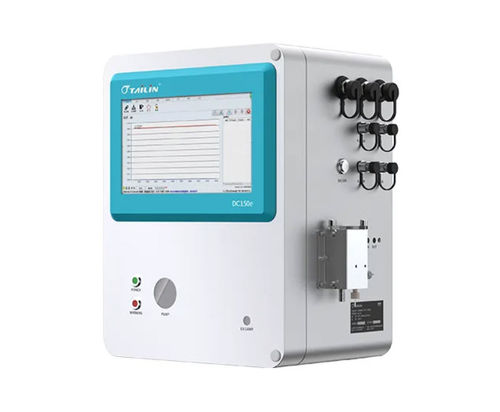

Ultra-pure water TOC analyzer HTY-DC150

for pure waterUV oxidationwaterproof

Product Introduction
The HTY-DC150 Total Organic Carbon (TOC) analyzer uses ultraviolet (UV) oxidation to fully oxidize small-molecule organic compounds. It integrates a high-precision conductivity detector to provide accurate, repeatable TOC measurements and real-time monitoring of ultra-low TOC concentrations for critical process waters.

Key Features

• Real-time TOC monitoring with instant alarm on abnormal values.
• IP65 dustproof and splash-proof design for stable operation in harsh environments.
• Compliant with GMP electronic data integrity and 21 CFR Part 11: 4-level user permissions, audit trail and multiple backups.
• Multiple control and interfacing options: PC terminals, industrial control systems and multi-channel transmitters.
• No consumable reagents required, reducing daily maintenance.
• Provides 3Q documentation: IQ, OQ and PQ.

Applications
Designed for semiconductor process water monitoring and pharmaceutical testing of purified water and water for injection. Also suitable for industrial scenarios requiring real-time monitoring of ultra-low TOC levels.

Technical specifications

• TOC detection range: 1.0–1500.0 μg/L
• Indication error: TC ±5% (JJG821-2005)
• Testing time: 3 min
• Repeatability: ≤2% (JB/T20178-2017)
• Sample temperature range: 1–95 ℃
• Linearity: R² ≥ 99.5%
• Rated power: 100 W
• Power supply: 100–240 VAC 50/60 Hz
• Detection method: Online detection
• Ambient conditions: 10–60 ℃, ≤100% RH, non-condensing
• Dimensions: 400 mm × 280 mm × 345 mm
• Weight: 30 kg
