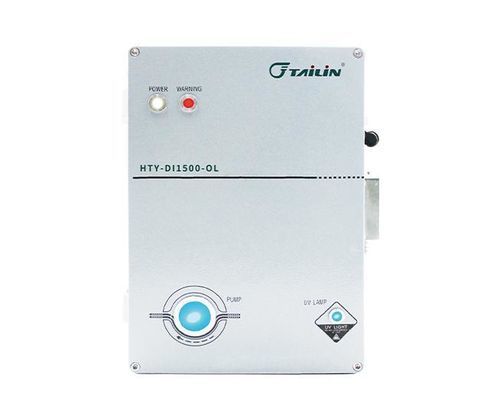

Ultra-pure water TOC analyzer HTY-DI1500-OL

for pure waterUV oxidationin-line

Product Introduction
HTY-DI1500-OL is an online total organic carbon (TOC) analyzer designed to quantify total organic carbon in water streams. Suitable for industrial water-quality control including pharmaceutical WFI/ultrapure water, semiconductor process water, power plant DI water and municipal/environmental monitoring. Tailin Online TOC analyzers support continuous real-time monitoring and process integration.

Key Features

• Various Control Methods Available: PC or IPC control for laboratory or plant-floor operation; supports stand-alone data integrity and MES integration via transmitters.
• Flexible Installation: Wall-mounted, clip-on, desktop or embedded installation to fit different system architectures.
• Remote Data Transmission: Multi-signal outputs (analog and digital) for linkage with water-management systems and control rooms.
• Multi-Channel Transmitter: Transmits temperature, TOC, conductivity, pH, dissolved oxygen and additional process signals.
• Disassembly-free Design: Simplifies routine operation and maintenance, minimizing downtime.
• Data Integrity: Compliant with GMP and 21 CFR Part 11 requirements; four-level password control, audit trail and multiple backup options.

Measurement Method
Dual-wavelength UV oxidation to mineralize organics, followed by direct conductivity detection of resulting CO2 to calculate TOC concentration.

Compliance
Designed to meet GMP and FDA 21 CFR Part 11 requirements for electronic data integrity, including multi-level user access and audit trail functionality.

Applications
Online detection of total organic carbon in water for injection (WFI), pharmaceutical ultrapure water, semiconductor ultrapure water, deionized (DI) water for power plants, environmental monitoring and municipal water-quality control.

Technical specifications

• Detection range: 1.0–1500.0 μg/L
• Recommended sample conductivity: 0–5.1 μS/cm @25℃
• Power supply: 100–240 VAC, 50/60 Hz
• Test time: 3 min
• Rated power: 100 W
• Ambient conditions: 10–60℃, 5–90% RH (non-condensing)
• Indication error: ±5%
• Sample temperature: 1–99℃
• Dimensions: 24 × 34 × 16 cm
• Weight: 12 kg
• Repeatability: ≤ 2%
