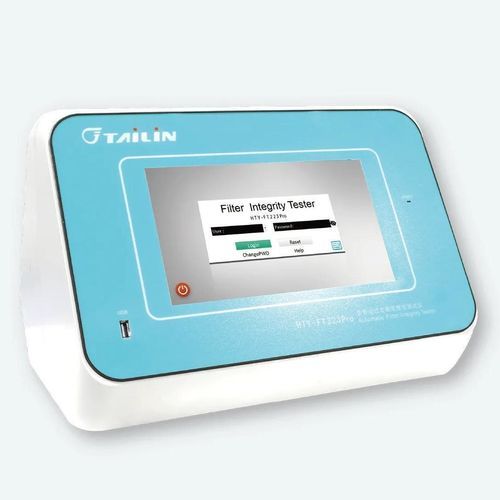

Integrity tester HTY-FT223 Pro

for filtersbenchtop

Introduction
The HTY-FT223 Pro Filter Integrity Tester is a microcomputer-controlled analytical instrument developed by Tailin for quantitative integrity testing of filter cartridges, membrane discs and filter assemblies in laboratory and production environments. It supports automated test sequences, secure data handling and is suited for pharmaceutical and food & beverage quality control.

Detection methods / Test types

• Bubble point
• Forward flow
• Water intrusion / Pressure hold
• Combined forward flow and bubble point

Key features

• Dust-proof & backflow-proof design: Easy to clean; prevents liquid backflow and upstream microbial contamination.
• 10-inch capacitive full touch screen: High-resolution interface for test configuration and result review.
• Dust-free high-fidelity printing: Fast printout and long-term data storage capability (data retention more than 10 years).
• Water-resistant housing: IP54 protection to reduce risk of short-circuit from splashes.
• Wireless and LAN connectivity: Supports remote data transfer, synchronization and networked test management.
• Data integrity & compliance: 21CFR Part 11 support, 4-level user access, audit trail and multiple backup options.

Applications

• Pharmaceutical industry: Integrity testing of hydrophilic and hydrophobic filters including pleated cartridges, capsule filters, disc membranes and assembled filter systems used in drug manufacturing and aseptic production.
• Food & beverage industry: Filter verification in wine, bottled water and beverage processing lines.

Technical specifications

• Model: HTY-FT223 Pro
• Input voltage: 100–240 VAC
• Input frequency: 50/60 Hz
• Power consumption: 160 W
• Display: 10-inch capacitive full touch screen
• Protection level: IP54
• Test accuracy (Forward flow): ±4% or 0.1 mL/min
• Test accuracy (Water intrusion): ±4% or 0.2 mL/min
• Test accuracy (Bubble point): ±50 mbar
• Sensitivity (Forward flow): 0.01 mL/min; test range: 0.1–600 mL/min
• Sensitivity (Water intrusion): 0.01 mL/min; test range: 0.01–100 mL/min
• Sensitivity (Bubble point): 1 mbar; test range: 100–8000 mbar
• Pressure-hold test range: 100–8000 mbar
• Repeatability: ≤3%
• Dimensions: 42 cm × 30 cm × 28 cm
• Weight: 10 kg
• Data compliance: 21CFR Part 11, 4-level user access, audit trail and backup options
• Connectivity: Wireless and LAN support for remote data management
