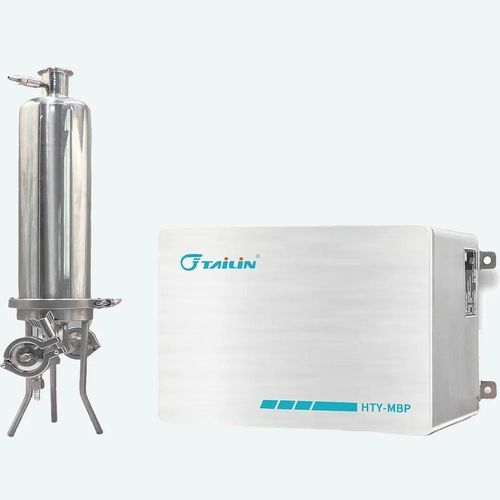

Integrity tester HTY-MBP

for clean roomsfor filtersfor the food industry

Product Introduction
A filter integrity tester verifies the integrity of filter elements (cartridges, membranes) by non-destructive methods for online verification during production and process validation. Suitable for pharmaceutical, bioprocessing and food & beverage environments where in-line integrity checks are required.

Features

• Designed for PUPSIT process: Maintains aseptic conditions for online integrity verification of disposable filtration systems.
• Remote online operation: Enables remote control and monitoring to simplify PUPSIT procedures and reduce masking effects.
• Customizable test methods: Supports bubble point, diffusive flow, water intrusion and pressure hold tests selectable per application.
• Standard fieldbus interfaces: Provides PLC/SCADA connectivity for parameter assignment, test control and real‑time data exchange.
• Compliance-ready module: Status, start/stop and results accessible via PLC HMI; data managed through SCADA for traceability.
• Flexible installation: Desktop or clamp-on mounting to adapt to different process lines and cleanroom layouts.

Specifications
Input Voltage: (100-240) VAC
Input Frequency: 50/60 Hz
Input Power: 90 W
Detection Accuracy: Bubble Point ±50 mbar
Detection Range: Bubble Point 400–8000 mbar
Sensitivity: Bubble Point 1 mbar
Repeatability Error: ≤3%
Dimensions: 300×200×200 mm

Applications
The product can be used for:

• Disposable filtration system PUPSIT
• Radiopharmaceutical production
• Pharmaceutical liquid preparation systems
• Intake pressure recovery on freeze dryers

Technical specifications

• Model: HTY-MBP
• Input Voltage: (100-240) VAC
• Input Frequency: 50/60 Hz
• Input Power: 90 W
• Detection Accuracy: Bubble Point ±50 mbar
• Detection Range: Bubble Point 400–8000 mbar
• Sensitivity: Bubble Point 1 mbar
• Repeatability Error: ≤3%
• Dimensions (W×D×H): 300×200×200 mm
• Functions: bubble point, diffusive flow, water intrusion, pressure hold
• Installation options: desktop or clamp-on
• Interfaces: standard fieldbus for PLC/SCADA integration
