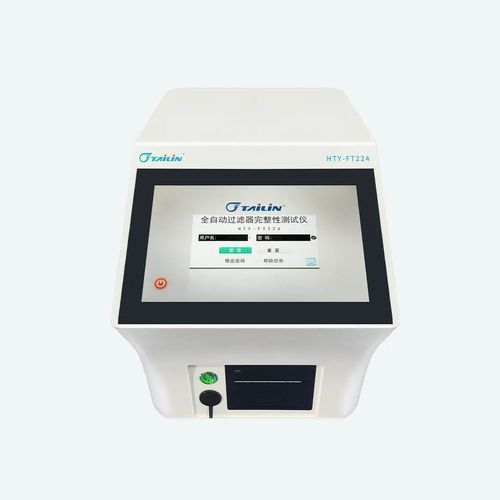

Flow tester HTY-FT224

integritypressurebubble point

Product introduction
The HTY-FT224 Filter Integrity Tester, developed by Tailin, is a microcomputer-based precision instrument for verifying the integrity of filter elements and membranes in filtration systems. It supports multiple validated detection modes for industrial filtration control and quality assurance.

Detection methods

• Bubble point test
• Forward flow (flow through) test
• Water intrusion / pressure hold test
• Combined forward flow and bubble point detection

Key features

• Dust-proof & Backflow-proof design: Easy-to-clean construction prevents liquid backflow and upstream microbial contamination.
• 10-inch capacitive touchscreen: Large-format, glove-compatible interface with wide viewing angle for improved operator usability.
• Multiple data interfaces: Configurable outputs with Ethernet and Wi‑Fi options for data export and integration.
• Short test times: Fast bubble point cycles and high-sensitivity forward flow measurement for efficient throughput.
• High-fidelity, dust-free printing: Rapid result printing and long-term archival storage (data retention >10 years).
• Data integrity and compliance: Meets GMP and 21 CFR Part 11 requirements with four-level password control, audit trail, and backup options.

Technical specifications

• Model: HTY-FT224
• Input voltage: 100–240 VAC
• Input frequency: 50/60 Hz
• Input power: 160 W
• Sensitivity (forward flow): 0.01 mL/min
• Test range (forward flow): 0.1–1000 mL/min
• Accuracy (forward flow): ±4% or 0.1 mL/min
• Sensitivity (water intrusion): 0.01 mL/min
• Test range (water intrusion): 0.01–100 mL/min
• Accuracy (water intrusion): ±4% or 0.02 mL/min
• Sensitivity (bubble point): 1 mbar
• Test range (bubble point): 100–8000 mbar
• Accuracy (bubble point): ±50 mbar
• Repeatability: ≤3%
• Test range (pressure hold): 100–8000 mbar
• Sensitivity (pressure hold): 1 mbar
• Dimensions: 27 cm × 46 cm × 35 cm

Applications

• Pharmaceutical industry: Integrity testing of hydrophilic and hydrophobic filters, pleated cartridges, capsule filters, disc membranes and assemblies.
• Food & beverage: Verification of filters used in wine, bottled water and beverage production.
• Municipal and industrial water: Integrity checks for water treatment and related processes.
