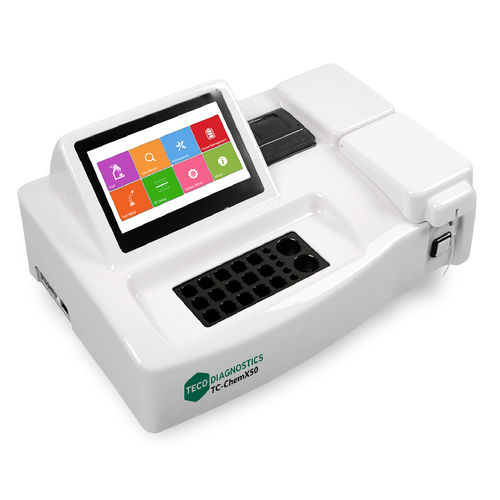

TC-ChemX50 is a microcomputer-based semi-automatic biochemistry analyzer with integrated optics, mechanics, and automation control. Designed for use with Teco's clinical chemistry reagents, it enables quantitative determination of biochemical analytes in hospitals and research labs.
Test Method
1 point end, 2 point end (sample blank), Kinetics, Fixed-time, Coagulation (Optional)
Optics
340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm (2 more for optional)
Lamphouse
Long-life tungsten halogen lamp(6V/10W), auto-sleep function
Display
7.0" TFT LCD with touch screen, 800*480 pixels
Printer
Built-in thermal printer, 57mm printer paper
Temperature
25, 30, 37 ̊C and Room temperature
Flow cell capacity & optical path
32μl, 10mm
Resolution
0.0001 Abs
Photometric range
0.0000 - 4.0000 Abs
Operational Environment
10 ̊C~30 ̊C, Humidity: 30%~80%
Interface
4 USB hosts, 1 USB slave, 1 Ethernet port
USB port(host) for keyboard, mouse, printer, U disk, bar cod reader etc
USB port (slave) for PC connection(support PC software control function)
Power Source
AC 100 - 240V, 50/60 Hz
Windows-embedded compact 7 operation system
7" true color touchscreen (800*480 pixels)
5 USB ports & 1 Ethernet port & cuvette testing mode
Flow cell & cuvette testing capabilities
Multifunctional incubator & blood coagulation function
Massive storage capacity of 300+ programs & 200,000 results
