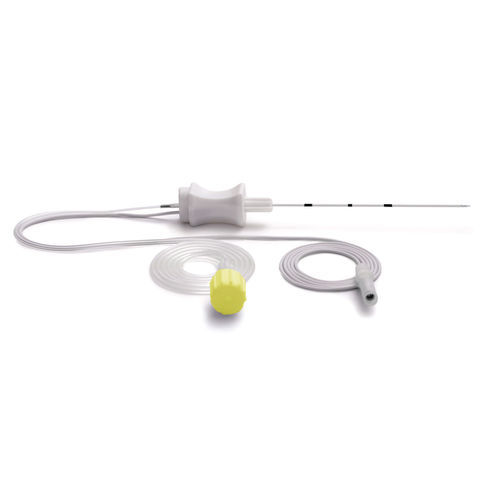

Nerve stimulation needle 902070-23

sterileatraumatic23G

The UPA stimulation needle is a unique injection cannula equipped with an a-traumatic pencil tip bevel and intended for the realization of peripheral blocks with stimulation. The surface treatment of the steel allows a smooth sliding inside the tissues and a precise stimulation through the needle tip.

Features

• Ergonomic injected handle (mono-block) reduces the risk of leakage.
• Equipped with an extension line with Neuroaxial connection according to ISO 80369-6 and integrated electric cable.
• Centimeter marking every 10 mm to check the insertion depth.
• Monopolar cable compatible with all neurostimulators on the market.

Technical Specifications

• Gauge: 23G
• Length: 70 mm
• Tip: A-traumatic pencil tip bevel
• Surface: Special steel treatment for smooth sliding and precise stimulation
• Handle: Ergonomic mono-block
• Extension line: Neuroaxial connection (ISO 80369-6), integrated electric cable
• Markings: Centimeter, every 10 mm
• Cable: Monopolar, universal compatibility
