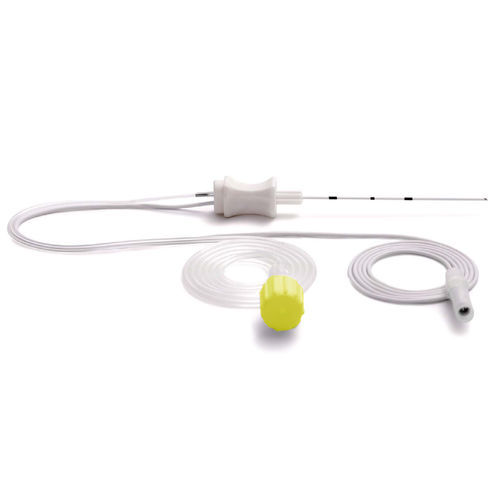

Nerve stimulation needle 983070-22

sterile22G

The UPB stimulation needle is a single injection cannula with a 30° bevel, designed for peripheral blocks with stimulation. The surface treatment of the steel allows a smooth sliding inside the tissues and a precise stimulation through the tip of the needle.

FEATURES

• Ergonomic injected handle (mono-block) that reduces the risk of leakage.
• Equipped with an extension with Neuroaxial connection according to ISO 80369-6 and integrated electric cable.
• Centimeter marking every 10 mm to check the insertion depth.
• Monopolar cable compatible with all neurostimulators on the market.

Technical Specifications

• Needle type: Stimulation needle
• Gauge: 22G
• Length: 70 mm
• Bevel: 30°
• Single injection cannula
• Surface treated steel for smooth sliding
• Peripheral block application
• Neuroaxial connection (ISO 80369-6)
• Integrated electric cable
• Centimeter marking every 10 mm
• Monopolar cable compatibility
