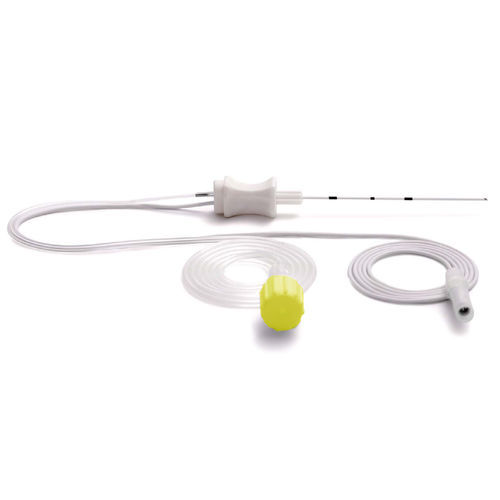

Nerve stimulation needle 983050-22

sterile22G

The UPB stimulation needle is a single injection cannula with a 30° bevel, designed for peripheral blocks with stimulation. The surface treatment of the steel allows a smooth sliding inside the tissues and a precise stimulation through the tip of the needle.

Features

• Ergonomic injected handle (mono-block) that reduces the risk of leakage.
• Equipped with an extension line with Neuroaxial connection according to ISO 80369-6 and integrated electric cable.
• Centimeter marking every 10 mm to check the insertion depth.
• Monopolar cable compatible with all neurostimulators on the market.

Technical Specifications

• Needle type: Stimulation needle for peripheral blocks
• Bevel: 30°
• Gauge: 22G
• Length: 50 mm
• Connection: NXFit (Neuroaxial connection, ISO 80369-6)
• Handle: Ergonomic mono-block
• Markings: Centimeter scale every 10 mm
• Cable: Integrated monopolar electric cable
