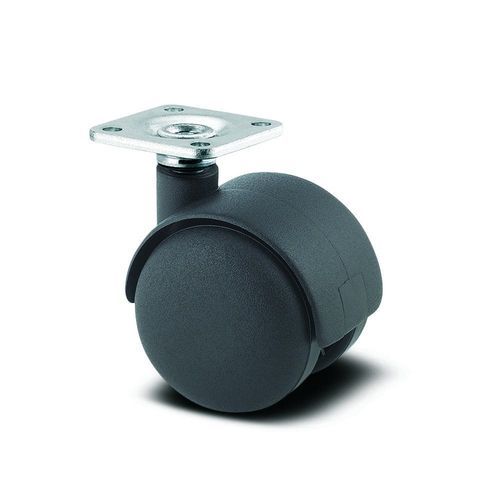

Hospital bed wheel Lumina

for examination chairspolypropyleneswiveling

Short description
The Lumina swivel castor features a square plate fitting for secure mounting applications. The housing is made from polypropylene and incorporates a stem with a swiveling bearing system for smooth directional movement. The wheel assembly comprises a polypropylene body with tread material identical to the wheel body, using a plain bearing with spacer tube for reliable operation. Wheel diameter: 1.38 in; overall caster height: 1.93 in. Load capacities: dynamic 66.14 lb at speeds up to 1.86 mph; static 132.28 lb. Suitable for bedside tables, furniture, media furniture, office chairs and office furniture where mobility is required.

Advantages

• Non-hazardous materials
• Tested quality
• Colour matching

Special Features

• Non-hazardous materials: Complies with RoHS and REACH. Does not contain polycyclic aromatic hydrocarbons (PAHs) or chromium (VI).
• Tested quality: Tested in our laboratory for compliance with European standards.
• Variable fitting options: Different fitting dimensions for a wide range of applications.
• Colour matching: Colours can be adapted to match the product design.
• Painted surface: Gold, chrome, or glossy finishes available.
• Visual integration: Different dome diameters for a seamless transition from castor to application.
• Robust cover: Cover made of die-cast zinc or synthetic material.
• Low wear and tear wheels: Durable wheels with extremely low wear.
• Chemical-resistant components: Resistant to many cleaning agents and chemical substances.
• Optimised manoeuvrability: Twin wheel housing provides high manoeuvrability due to differential effect.
• Reduced cleaning: Mainly smooth surfaces for quick and easy cleaning.

Technical specifications

• Article Number: A520POI035P41-38x38/8
• EAN: 4031582409895
• Product name / Series: Lumina
• Type: Swivel castor
• Wheel diameter: 1.38 in
• Overall height: 1.93 in
• Overall width: 1.5 in
• Tread width: 0.24 in
• Hardness of tread (D): 65 Shore D
• Body material: Polypropylene
• Tread material: Identical with wheel body (polypropylene)
• Bearing: Plain bearing with spacer tube
• Axle: Riveted
• Threadguards: Without threadguard
• Fork shape: Twin wheel housing, closed, with dome
• Material (housing): Polypropylene
• Swivel bearing: Stem, swiveling
• Swivel interference: 2.64 in
• Swivel radius: 1.32 in
• Plate fitting: Square plate
• Plate length: 1.5 in
• Plate width: 1.5 in
• Plate hole diameter: 0.2 in
• Plate hole length (Maximum): 1.06 in
• Plate hole width (Maximum): 1.06 in
• Load capacity (dynamic at 3 km/h / ~1.86 mph): 66.14 lb
• Load capacity (static): 132.28 lb
• Overall weight: 0.04 lb
• Operating temperature range (Minimum): 14 °F
• Operating temperature range (Maximum): 104 °F
• Standard: EN12528 - Furniture Castors
• Electric conductive: no
• Stainless: no
