Wheel with brake Styleapolyamideswiveling
Add to favorites
Compare this product
Characteristics
- Options
- polyamide, swiveling, with brake
- Load capacity
176 lb
(80 kg)- Wheel diameter
2.95 in
Description
Short description

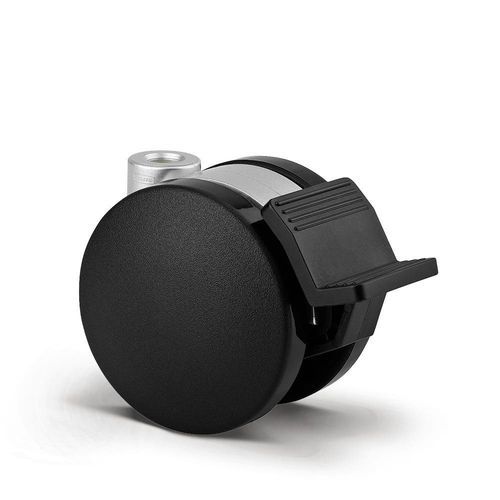

The Stylea swivel castor with wheel brake is designed for furniture and industrial applications requiring compact dimensions and reliable locking. It features a blind hole for B10 fitting, a polyamide housing with a twin-wheel configuration and a 2.95 in diameter wheel with tread identical to the wheel body. Swiveling stem bearing and a plain bearing with spacer tube ensure smooth operation and load support.
Features
Product advantages
Special features
Technical data
Article Number: 5925UOI075L51-10 DOM22 RL9006
EAN: 4031582311273
Type: Swivel castor with wheel brake
Wheel diameter: 2.95 in
Overall width: 2.52 in
Overall height: 2.99 in
Load capacity (dynamic at 3 km/h): 176.37 lb
Load capacity (static): 352.74 lb
Overall weight: 0.46 lb
Temperature range: 14 °F to 104 °F
Fitting type: Blind hole for B10 fitting (bolt hole Ø 0.39 in)
Housing material: Polyamide
Wheel body material: Polyamide; tread identical to wheel body
Hardness of tread: 75 Shore D
Bearing: Plain bearing with spacer tube
Axle: Riveted
Dome diameter: 0.87 in
Tread width: 0.39 in
Swivel radius: 3.15 in
Swivel interference: 6.3 in
Product specifications
The Stylea swivel castor with wheel brake is designed for furniture and industrial applications requiring compact dimensions and reliable locking. It features a blind hole for B10 fitting, a polyamide housing with a twin-wheel configuration and a 2.95 in diameter wheel with tread identical to the wheel body. Swiveling stem bearing and a plain bearing with spacer tube ensure smooth operation and load support.
Features
- Wheel diameter: 2.95 in
- Overall height: 2.99 in
- Overall width: 2.52 in
- Load capacity (dynamic at 3 km/h): 176.37 lb
Product advantages
- Materials compliant with RoHS and REACH
- Tested to European standards
- Colour options for visual integration
Special features
- Non-hazardous materials: No polycyclic aromatic hydrocarbons or chromium (VI)
- Tested quality: Laboratory-tested for EN compliance
- Prevents unintended movement: Manual wheel lock
- Variable fitting options: Different fitting dimensions available
- Colour matching: Custom colours on request
- Painted surface options: Gold, chrome or glossy finishes
- Visual integration: Multiple dome diameters for smooth transition
- Low-wear wheels: Durable tread with very low abrasion
- Chemical resistance: Components resistant to many cleaning agents
- Optimised manoeuvrability: Twin-wheel differential effect
- Easy cleaning: Predominantly smooth surfaces
Technical data
Article Number: 5925UOI075L51-10 DOM22 RL9006
EAN: 4031582311273
Type: Swivel castor with wheel brake
Wheel diameter: 2.95 in
Overall width: 2.52 in
Overall height: 2.99 in
Load capacity (dynamic at 3 km/h): 176.37 lb
Load capacity (static): 352.74 lb
Overall weight: 0.46 lb
Temperature range: 14 °F to 104 °F
Fitting type: Blind hole for B10 fitting (bolt hole Ø 0.39 in)
Housing material: Polyamide
Wheel body material: Polyamide; tread identical to wheel body
Hardness of tread: 75 Shore D
Bearing: Plain bearing with spacer tube
Axle: Riveted
Dome diameter: 0.87 in
Tread width: 0.39 in
Swivel radius: 3.15 in
Swivel interference: 6.3 in
Product specifications
- Article Number: 5925UOI075L51-10 DOM22 RL9006
- EAN: 4031582311273
- Series / Product name: Stylea
- Standard: EN12528 - Furniture Castors
- Fitting: Blind hole for B10 fitting, bolt hole diameter 0.39 in
- Fork shape: Twin wheel housing
- Threadguards: Without threadguard
