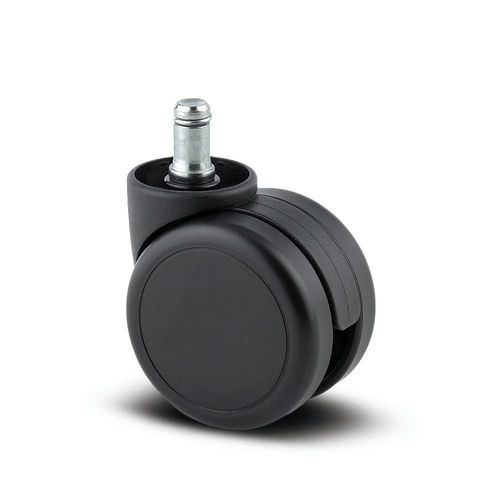

Hospital bed wheel Stylea

for examination chairspolyamideswiveling

Description
The Stylea swivel castor with stem and collar is built for smooth mobility and reliable attachment. The polyamide housing integrates a stem-swiveling bearing for controlled directional movement. The twin-wheel assembly features a polyamide wheel body and matching tread, mounted on a plain bearing with spacer tube.

Applications

• Bedside tables and household furniture
• Media furniture and office furniture
• Office chairs and equipment requiring mobility

Features

• Wheel diameter: 2.56 in (65 mm)
• Overall height: 2.83 in (72 mm)
• Load capacity: 110.23 lb (50 kg) at up to 1.86 mph (3 km/h)

Product advantages

• Non-hazardous materials compliant with RoHS/REACH
• Laboratory-tested for European standards
• Customisable colour matching

Special features

• Regulation compliance: Free of PAH and chromium (VI)
• Varied fitting options: Multiple stem dimensions for diverse applications
• Surface finishes: Painted options including chrome and glossy colours
• Visual integration: Multiple dome diameters for seamless transitions
• Low wear wheels: Durable tread with low abrasion
• Fast assembly: Plug-in fittings for quicker installation
• Chemical resistance: Resistant to many cleaning agents
• Optimised manoeuvrability: Twin-wheel differential effect for improved turning
• Easy cleaning: Smooth surfaces reduce maintenance time

Technical specifications

• Article Number: 5920UOI065B10-11x20 DOM32
• EAN: 4031582310870
• Type: Swivel castor
• Series / Product name: Stylea
• Wheel diameter: 2.56 in (65 mm)
• Overall height: 2.83 in (72 mm)
• Overall width: 1.81 in (46 mm)
• Load capacity at 3 km/h: 110.23 lb (50 kg)
• Overall weight: 0.27 lb (0.12 kg)
• Temperature range: 14 °F to 104 °F (-10 °C to 40 °C)
• Fitting type: Stem with grip ring, with collar
• Stem diameter: 0.43 in (11 mm)
• Housing material: Polyamide
• Fork shape: Twin wheel housing
• Swivel bearing: Stem, swiveling
• Dome diameter: 1.26 in (32 mm)
• Swivel interference: 4.17 in (106 mm)
• Swivel radius: 2.09 in (53 mm)
• Wheel body material: Polyamide
• Tread material: Identical with wheel body
• Tread width: 0.28 in (7.1 mm)
• Hardness of tread (D): 75 Shore D
• Axle: Riveted
• Bearing: Plain bearing with spacer tube
• Threadguards: Without threadguard
• Electrical conductive: No
• Stainless: No
