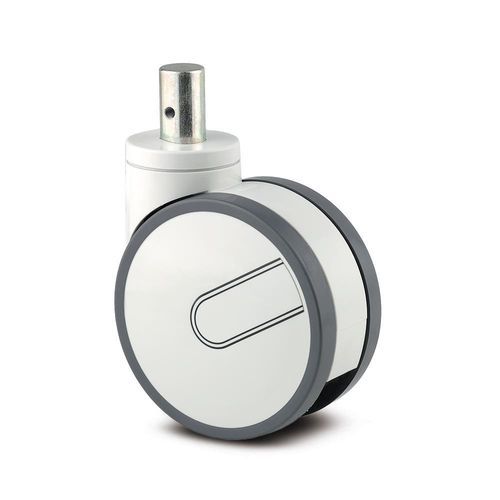

Medical trolley wheel Integral twin

for hospital bedfor operating tablepolyamide

Product description
The Integral twin swivel castor is designed for secure stem mounting and reliable manoeuvrability in medical environments. The housing is made from pressed medium-grade steel with a precision ball bearing swivel system for smooth directional changes. The twin wheel assembly features a polyamide body with injected polyurethane tread and precision ball bearings for optimal rolling performance. Wheel diameter: 4.92 in (125 mm); overall height: 5.91 in. Load ratings: dynamic 275.58 lb (at 3 km/h and 4 km/h), static 826.73 lb. Intended for medical equipment including anesthesia carts, diagnostic and imaging devices, hospital and care beds, surgical tables and robots, and ultrasound units.

Key advantages & special features

• RoHS and REACH compliant materials (no PAHs or chromium VI)
• Tested quality (TENTE laboratory tests; TÜV Süd monitored)
• Award-winning design
• Solid pressed steel housing, zinc plated
• Low-maintenance wheels with thread guards to reduce cleaning effort
• Non-marking tread with reduced abrasion
• Optimised rolling resistance for ergonomic handling
• Chemical-resistant components compatible with common cleaning agents
• TÜV Süd certified performance standard
• Good obstacle negotiation due to large wheels and elastic wheel centres
• Multistage locking: up to three positions (directional lock, total lock, free mobility)
• Improved manoeuvrability from twin-wheel differential effect
• Reduced cleaning effort thanks to mainly smooth surfaces
• Floor-friendly load distribution across two wheels
• Integrated cable protection (cable pusher)
• Extremely robust construction

Applications

• Anesthesia carts
• C-arms
• CT scanners
• MRI equipment
• X-ray equipment
• Care beds and hospital beds
• Hospitals, nursing and retirement homes
• Surgery robots and surgery tables
• Ultrasound equipment

Technical specifications

• Article Number: 2940UAP125R05-28 9002
• EAN: 4031582302486
• S4 Material Number: 990032980
• Series / Product name: Integral twin
• Type: Swivel castor
• Fitting: Solid stem, round (28 mm)
• Bolt mounting holes quantity: 2
• Bolt diameter: 1.1 in
• Bolt length: 1.77 in
• Bolt thread position: 0.75 in
• Wheel diameter: 4.92 in (125 mm)
• Overall height: 5.91 in
• Overall width: 2.48 in
• Overall weight: 2.46 lb
• Load capacity (at 3 km/h): 275.58 lb
• Load capacity (at 4 km/h): 275.58 lb
• Load capacity (Static): 826.73 lb
• Temperature range (Minimum): -13 °F
• Temperature range (Maximum): 176 °F
• Housing material: Steel sheet, medium
• Housing color: Gray white (RAL9002)
• Fork shape: Twin wheel housing
• Swivel bearing: Precision ball bearing
• Dome diameter: 2.42 in
• Swivel interference: 8.11 in
• Offset: 1.48 in
• Swivel radius: 4.06 in
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected
• Tread width: 0.47 in
• Body width: 0.47 in
• Hardness of tread (A): 92 Shore A
• Hardness of tread (D): 42 Shore D
• Bearing (wheel): Precision ball bearing
• Threadguards: With threadguard
• Wheel color: Gray white (RAL9002)
• Standard: EN12531 - Hospital Bed Castors
• Certification: Tested and monitored by TÜV Süd
• Electric conductive: No
• Stainless: No
