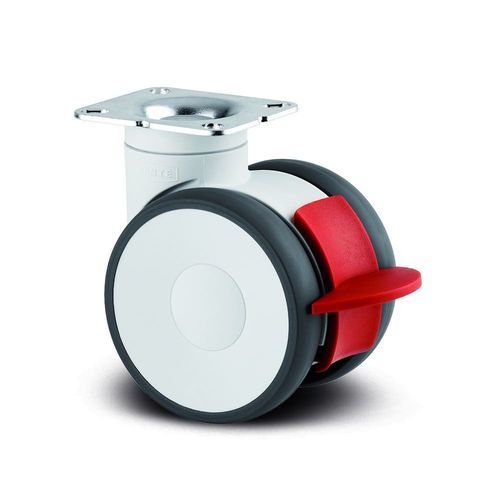

Medical trolley wheel Linea

with brakepolyamidepolyurethane

Product description
The Linea swivel castor with total lock is designed for medium‑duty mobile equipment. It features a rectangular plate with US bolt‑hole spacing for standardized mounting, a polyamide housing and precision ball bearings in both the swivel and wheel for smooth rotation and low rolling resistance. The wheel has a polyamide body with an injected polyurethane tread (92 Shore A) to protect floors and reduce noise.

Key advantages

• Non‑hazardous materials (RoHS / REACH compliant)
• Tested quality according to European standards (EN 12530)
• Customisable colour matching and branding options

Features

• Wheel: Polyamide body with injected polyurethane tread, hardness 92 Shore A
• Wheel diameter: 3.94 in (100 mm)
• Tread width: 0.79 in (20 mm)
• Threadguards: With threadguard
• Wheel bearing: Precision ball bearing
• Swivel bearing: Precision ball bearing
• Overall height: 4.88 in (124 mm)
• Overall width: 3.23 in (82 mm)
• Offset: 1.26 in (32 mm)
• Swivel radius: 4.25 in (108 mm)
• Swivel interference: 8.5 in (216 mm)
• Temperature range: 14 °F to 104 °F (−10 °C to +40 °C)

Special features

• Total lock: Simultaneous locking of wheel and swivel housing to prevent unintended movement
• Wheel lock for manual operation (directional lock)
• Colour coding: Green pedal for directional lock, red for total lock
• Integrated cable pusher to protect cables on the floor
• Low‑maintenance design: thread guards and smooth surfaces for easy cleaning
• Chemical and abrasion resistance for extended service life
• Individual branding: engraved, cast or printed options

Technical specifications

• Series / Product name: Linea
• Type: Swivel castor with total lock
• Article number: 5947UAP100P52 RAL9002
• EAN: 4031582359893
• Wheel diameter: 3.94 in (100 mm)
• Overall height: 4.88 in (124 mm)
• Overall width: 3.23 in (82 mm)
• Tread width: 0.79 in (20 mm)
• Dome diameter: 2.05 in (52 mm)
• Offset: 1.26 in (32 mm)
• Swivel radius: 4.25 in (108 mm)
• Swivel interference: 8.5 in (216 mm)
• Plate length: 3.74 in (95 mm)
• Plate width: 2.76 in (70 mm)
• Plate hole diameter: 0.43 in (11 mm)
• Plate hole length (max / min): 2.99 in / 2.83 in (76 / 72 mm)
• Plate hole width (max / min): 2.05 in / 1.75 in (52 / 44 mm)
• Housing material: Polyamide
• Fork shape: Twin wheel housing
• Wheel body material: Polyamide
• Tread material: Injected polyurethane
• Tread hardness: 92 Shore A
• Bearings: Precision ball bearings (wheel & swivel)
• Load capacity (dynamic, at ~3 km/h): 264.55 lb (120 kg)
• Load capacity (static): 529.11 lb (240 kg)
• Standard: EN12530
• Electric conductive: Not applicable / not present
