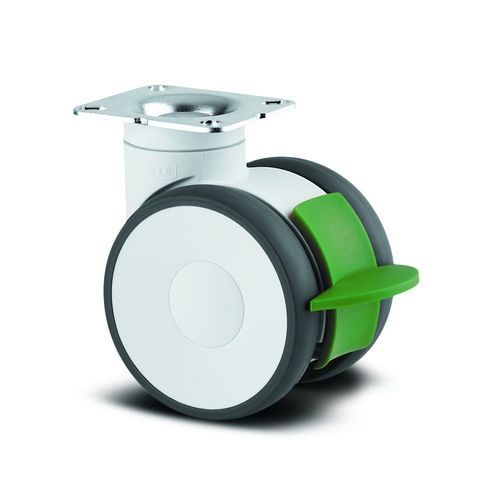

Wheel with brake Linea

polyamidepolyurethaneswiveling

Overview
The Linea swivel castor with directional lock is a twin-wheel industrial castor engineered for applications requiring controlled directional movement and easy mounting. The housing and wheel bodies are made of polyamide; the wheel tread is injected polyurethane (92 Shore A). Precision ball bearings in both the swivel and wheel ensure consistent swivel and rolling performance. The selected wheel diameter is 3.94 in (100 mm) and the overall height is 4.88 in (124 mm). Rated capacities: dynamic 264.55 lb (120 kg) at 3 km/h (≈1.86 mph) and static 529.11 lb (240 kg).

Key features

• Injected polyurethane tread (92 Shore A)
• Polyamide wheel body and housing
• Precision ball bearings in swivel and wheel
• With threadguard for reduced contamination
• Rectangular plate fitting, 95 × 70 mm (plate 3.74 × 2.76 in)
• Housing colour: Gray white (RAL9002)
• Twin wheel housing for optimized manoeuvrability (differential effect)

Product advantages & special features

• RoHS and REACH compliant materials
• Laboratory-tested to EN12530 castor standards
• Custom colour matching and painted surface options (gold, chrome, gloss)
• User-friendly colour-coded pedals (green = directional lock, red = total lock)
• Low-maintenance design with threadguards
• Non-marking tread with reduced abrasion
• Chemical-resistant components compatible with many cleaning agents
• Integrated cable protection (cable pusher)
• Individual branding options (engraved, cast or printed)

Configurator / Selected variant

• Wheel: Polyurethane (injected); precision ball bearing; with threadguard
• Diameter: 3.94 in (100 mm) — selected
• Overall height: 4.88 in (124 mm)
• Rated dynamic load capacity: 264.55 lb (120 kg) at 3 km/h (≈1.86 mph)
• Rated static load capacity: 529.11 lb (240 kg)
• Housing color: Gray white (RAL9002)
• Fitting: Rectangular plate, 95 × 70 mm

Technical specifications

• Article Number: 5941UAP100P51 RAL9002
• EAN: 4031582352320
• Series: Linea
• Type: Swivel castor with directional lock
• Wheel diameter: 3.94 in (100 mm)
• Overall width: 3.23 in (82 mm)
• Overall height: 4.88 in (124 mm)
• Dome diameter: 2.05 in (52 mm)
• Offset: 1.26 in (32 mm)
• Swivel radius: 4.25 in (108 mm)
• Swivel interference: 8.5 in (216 mm)
• Load capacity at 3 km/h (dynamic): 264.55 lb (120 kg)
• Load capacity (static): 529.11 lb (240 kg)
• Tread width: 0.79 in (20 mm)
• Tread material: Polyurethane, injected
• Wheel body material: Polyamide
• Housing material: Polyamide
• Swivel bearing: Precision ball bearing
• Wheel bearing: Precision ball bearing
• Hardness of tread: 92 Shore A
• Threadguards: With threadguard
• Fitting type: Rectangular plate
• Plate length: 3.74 in (95 mm)
• Plate width: 2.76 in (70 mm)
• Plate hole diameter: 0.43 in (11 mm)
• Plate hole length (max): 2.95 in (75 mm)
• Plate hole width (max): 1.97 in (50 mm)
• Temperature range: 14 °F to 104 °F (-10 °C to 40 °C)
• Standard: EN12530 - Devices Castors
