Polyamide wheel Linea

polyurethanestainless steelswiveling

Product overview

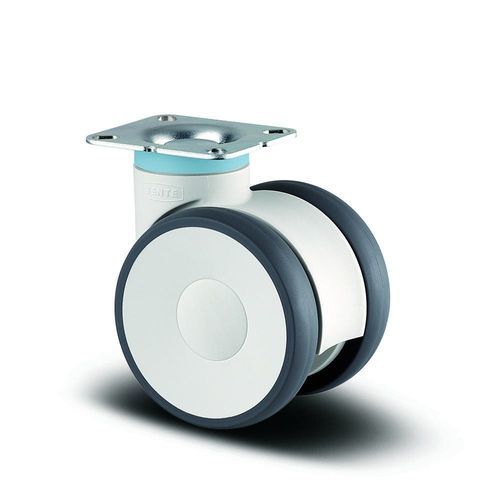

The Linea swivel castor with article number 5940UAC100P52 is a twin-wheel swivel castor designed for medium-duty industrial and commercial transport. It features a rectangular plate fitting with US-bolt hole spacing (95 x 70 mm) for standardized mounting. The housing and wheel body are made of polyamide while the tread is injected polyurethane (92 Shore A), offering low rolling resistance and floor protection. Wheel diameter: 3.94 in (100.08 mm). Overall caster height: 4.88 in (123.95 mm). Dynamic load capacity: 264.55 lb (≈120.0 kg) at speeds up to 3 km/h (≈1.86 mph); static load capacity: 529.11 lb (≈240.0 kg).

Advantages

• Non-hazardous materials (RoHS & REACH compliant)
• Laboratory-tested quality to EN12530
• Colour matching and custom finish options

Key features

• Series: Linea
• Type: Swivel castor (twin wheel housing)
• Wheel diameter: 3.94 in (100.08 mm)
• Overall caster height: 4.88 in (123.95 mm)
• Wheel body material: Polyamide
• Tread material: Injected polyurethane, hardness 92 Shore A
• Tread width: 0.79 in (20.07 mm)
• Wheel bearing: Precision ball bearing, stainless
• Swivel bearing: Precision ball bearing
• Threadguards: With threadguard (low-maintenance operation)
• Housing material: Polyamide
• Housing colour: Gray white (RAL9002)

Configurator options (available selections shown)

• Wheel: Injected polyurethane tread, precision stainless ball bearing, with threadguard
• Diameter options: 1.97 in (unavailable), 3.94 in (selected), 4.92 in, 5.91 in (unavailable)
• Housing color: Gray white (RAL9002)
• Type: Swivel castor
• Fitting: Rectangular plate, US-bolt hole spacing, 95 x 70 mm

Special features

• RoHS & REACH compliant: free of PAHs and chromium (VI)
• Tested quality: laboratory-tested for European standards
• Colour matching and painted finish options (gold, chrome, glossy)
• Low-maintenance design: thread guards and smooth surfaces reduce cleaning
• Non-marking tread: minimal floor abrasion
• Chemical-resistant components: resistant to many cleaning agents
• Optimised manoeuvrability: twin-wheel differential effect
• Integrated cable protection: cable pusher to protect floor-laid cables
• Branding options: engraved, cast or printed identification

Technical specifications

• Article Number: 5940UAC100P52 RAL9002
• EAN: 4031582352931
• Type: Swivel castor (twin wheel)
• Overall width: 3.23 in (82.04 mm)
• Overall height: 4.88 in (123.95 mm)
• Wheel diameter: 3.94 in (100.08 mm)
• Tread width: 0.79 in (20.07 mm)
• Tread material: Polyurethane, injected (92 Shore A)
• Wheel body material: Polyamide
• Wheel bearing: Precision ball bearing, stainless
• Swivel bearing: Precision ball bearing
• Threadguards: With threadguard
• Load capacity at 3 km/h: 264.55 lb (≈120.0 kg)
• Load capacity (static): 529.11 lb (≈240.0 kg)
• Temperature range (Maximum): 104 °F (40 °C)
• Temperature range (Minimum): 14 °F (-10 °C)
• Series: Linea
• Standard: EN12530 - Devices Castors
• Electric conductive: no (not electrically conductive)
• Stainless: yes
• Fitting type: Rectangular plate, US-bolt hole spacing
• Plate hole diameter: 0.43 in (10.92 mm)
• Plate hole length (Max/Min): 2.99 in / 2.83 in (75.95 mm / 71.88 mm)
• Plate hole width (Max/Min): 2.05 in / 1.75 in (52.07 mm / 44.45 mm)
• Plate length x width: 3.74 in x 2.76 in (95 x 70 mm)
• Housing color: Gray white (RAL9002)
• Fork shape: Twin wheel housing
• Housing material: Polyamide
• Dome diameter: 2.05 in (52.07 mm)
• Swivel interference: 7.09 in (180.09 mm)
• Offset: 1.26 in (32.00 mm)
• Swivel radius: 3.54 in (89.92 mm)
