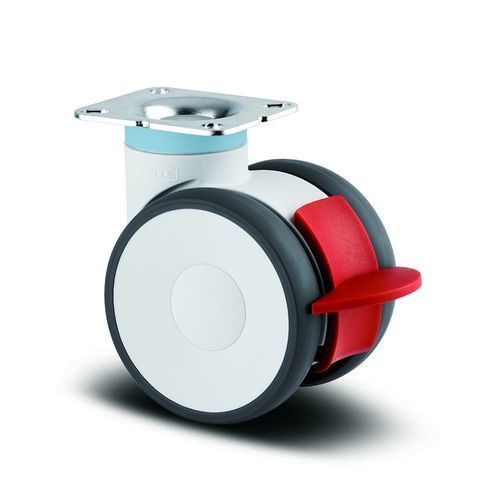

Wheel with brake Linea

polyamidepolyurethanestainless steel

Short description The Linea is a swivel castor with total lock functionality, designed for demanding industrial applications. The unit features a rectangular plate fitting for secure mounting to equipment frames. The housing is constructed from polyamide and uses precision ball bearings in the swivel mechanism to ensure smooth rotation and long service life. The wheel assembly has a polyamide body with an injected polyurethane tread for floor protection and reduced noise. The wheel runs on stainless precision ball bearings for durability and corrosion resistance. Load data: dynamic capacity 286.6 lb at moving speeds up to approx. 1.86 mph (≈3 km/h) and static capacity 573.2 lb for stationary use.

Key advantages

• Non-hazardous materials
• Tested quality
• Colour matching available (housing color adaptable)

Features

• Wheel diameter: 4.92 in
• Overall height (complete caster): 5.83 in
• Dynamic load capacity (at ~3 km/h): 286.6 lb
• Static load capacity: 573.2 lb
• Tread material: injected polyurethane
• Wheel body: polyamide
• Bearing: precision ball bearing, stainless
• Threadguard: with threadguard
• Housing material: polyamide
• Fitting: rectangular plate (77 x 67 mm)

Special features

• Total lock: locks wheel and swivel housing simultaneously (secured stand)
• Prevents unintended movement: wheel lock for manual operation
• User-friendly colour scheme: green directional lock pedal and red total lock pedal
• Low-maintenance wheels: thread guards for unobstructed operation with minimal cleaning
• Non-marking movement: reduced abrasion and minimal cleaning requirements
• Award-winning design; options for painted surfaces and colour matching
• Chemical-resistant components: insensitive to many cleaning agents
• Optimised manoeuvrability: twin wheel castor differential effect
• Integrated cable protection: cable pusher to protect cables on the floor

Performance indicators

• Roll performance: 5/5
• Movement noise: 3/5
• Attrition (wear): 4/5
• Corrosion resistance: 4/5

Technical specifications

• Article Number: 5947UAC125P50 RAL9002
• EAN: 4031582353099
• Product name / Series: Linea
• Type: Swivel castor with total lock
• Wheel diameter: 4.92 in
• Overall height: 5.83 in
• Overall width: 3.23 in
• Load capacity (dynamic @ ~3 km/h): 286.6 lb
• Load capacity (static): 573.2 lb
• Temperature range (Minimum): 14 °F
• Temperature range (Maximum): 104 °F
• Standard: EN12530 - Devices Castors
• Electric conductive: no
• Stainless: yes
• Fitting type: Rectangular plate
• Plate length: 3.03 in
• Plate width: 2.64 in
• Plate hole diameter: 0.33 in
• Plate hole length (Maximum): 2.42 in
• Plate hole length (Minimum): 2.2 in
• Plate hole width (Maximum): 2.03 in
• Housing color: Gray white (RAL9002)
• Fork shape: Twin wheel housing
• Housing material: Polyamide
• Swivel bearing: Precision ball bearing
• Dome diameter: 2.05 in
• Swivel interference: 10.16 in
• Offset: 1.57 in
• Swivel radius: 5.08 in
• Wheel tread width: 0.79 in
• Hardness of tread: 92 Shore A
• Wheel body material: Polyamide
• Tread material: Polyurethane, injected
• Threadguards: With threadguard
• Bearing (wheel): Precision ball bearing, stainless
