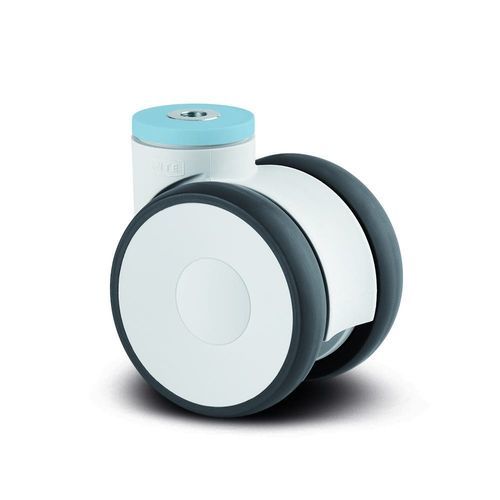

Polyamide wheel Linea

polyurethanestainless steelswiveling

Overview
The Linea swivel castor with bolt hole fitting provides a secure mounting solution for industrial and commercial equipment. Housing and wheel body are polyamide; swivel and wheel use stainless precision ball bearings. Wheel tread is injected polyurethane (92 Shore A) for floor protection and low noise. Wheel Ø 3.94 in (100 mm); overall height 4.65 in (118 mm). Dynamic load 264.55 lb (120 kg) at up to 3 km/h; static load 529.11 lb (240 kg).

Key features

• Bolt hole fitting for secure attachment (Ø hole: 0.51 in / 13 mm)
• Housing material: polyamide
• Swivel bearing: precision stainless ball bearing
• Wheel body: polyamide
• Tread: injected polyurethane, 92 Shore A
• With threadguard to prevent debris build-up
• Colour: gray white (RAL9002)
• Non-hazardous materials; tested quality; colour matching available

Construction & Materials

• Wheel diameter: 3.94 in (100 mm)
• Overall height (complete caster): 4.65 in (118 mm)
• Tread width: 0.79 in (20 mm)
• Tread material: injected polyurethane
• Body material: polyamide
• Wheel bearing: stainless precision ball bearing
• Swivel bearing: precision ball bearing
• Hardness of tread: 92 Shore A
• Fork shape: twin wheel housing

Performance

• Dynamic load capacity (at 3 km/h / up to 1.86 mph): 264.55 lb (120 kg)
• Static load capacity: 529.11 lb (240 kg)
• Designed for operation up to 3 km/h under stated dynamic load
• Improved manoeuvrability from twin-wheel differential effect
• Low-maintenance: threadguards reduce obstruction and cleaning needs

Operating conditions

• Temperature range: min -10 °C (14 °F), max 40 °C (104 °F)
• Chemical resistance: components resistant to many cleaning agents and chemicals
• Non-marking movement: reduced abrasion for sensitive floors

Additional information

• Series / Product family: Linea
• Article number: 5940UAC100P30-13 RAL9002
• EAN: 4031582352443

Technical specifications

• Type: Swivel castor
• Series: Linea
• Wheel diameter: 3.94 in (100 mm)
• Overall width: 3.23 in (82 mm)
• Overall height: 4.65 in (118 mm)
• Bolt hole diameter: 0.51 in (13 mm)
• Load capacity at 3 km/h: 264.55 lb (120 kg)
• Static load capacity: 529.11 lb (240 kg)
• Overall weight: 1.36 lb (0.62 kg)
• Standard: EN12530 - Castors
• Electric conductive: No
• Stainless components: Yes
• Swivel radius: 3.54 in (90 mm)
• Offset: 1.26 in (32 mm)
• Dome diameter: 2.05 in (52 mm)
• Swivel interference: 7.09 in (180 mm)
• Tread width: 0.79 in (20 mm)
• Tread hardness: 92 Shore A
• Tread material: injected polyurethane
• Body material: polyamide
• Bearing: stainless precision ball bearing
• Threadguards: With threadguard
