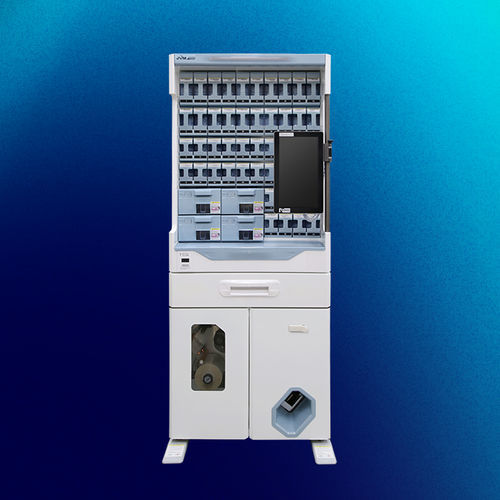

Automatic medicine packaging and dispensing system DOC3

Overview
Compact blister packaging system for optimal space utilisation, designed for pharmacy and hospital medication dispensing. Single-door format supports dense storage with automated drug recognition and a capacity of up to 174 canisters.

Key design points

• ATDPS design and efficiency: touchscreen and front-loading with integrated scanner to streamline steps in multi-dose strip (MDS) production.
• Slim format: narrow single-door layout that maximises capacity within a minimal footprint.
• Adaptable door: configurable door opening direction for seamless integration into pharmacy workflows.

Variants
Model | No. of patients | No. of canisters
DOC3-174 | 150 – 400 | 174
DOC3-145 | 150 – 400 | 145
DOC3-116 | 150 – 400 | 116
DOC3-80 | 150 – 400 | 80

Components & functional highlights

• Smart canister: reservoirs for storage and dispensing of medicines.
• Connection support: anchoring unit where each canister connects and transmits data to the software.
• Autocanister: configurable hoppers for loading tablets without a fixed canister, enabling automation of high-turnover medicines.
• STS Tray system: trays for assisted manual loading and multi-patient tray handling for split or low-turnover medicines.
• LCD Touch Monitor: vertical touchscreen interface for operational control and simplified user interaction.
• Integrated scanner: barcode reader embedded in the machine for automatic medicine registration and precise stock control.
• Pouch outlet with pouch clip: extraction zone for packaged medication fitted with a retention system.
• Consumable window: viewing port in the sealing door to monitor remaining consumable level visually.

Advanced features

• Automatic ACRS recognition: each canister includes a chip for automatic identification and precise location tracking to minimise human error.
• Variable pouch size (optional): automatic pouch-sizing across multiple dimensions to reduce consumable waste.
• Pouch customisation: configurable print layout including medicine description, barcodes and batch numbers for patient clarity and traceability.
• Medicine protection (optional): automatic locking mechanism to restrict physical access to stored drugs and support security compliance.
• Monitoring (optional): real-time monitoring and synchronisation with the JVMON mobile app to check system status, consumable levels and operational alerts remotely.
• Stock replenishment: front-loading canister design allows replenishment without full canister removal, minimising production interruptions.
• Class A certified consumable: premium sealing materials for optimal preservation and readability of packaged medication.
• Easy cleaning: compartmented structure designed to facilitate thorough cleaning and prevent cross-contamination.

Technical specifications

• Commercial denomination: DOC3 series
• Maximum canister capacity (largest variant): up to 174 canisters
• Available variants (canisters): 174, 145, 116, 80
• Recommended patient range (per system): 150 – 400 patients (as indicated per variant)
• Touchscreen interface: vertical LCD touch monitor
• Integrated barcode scanner for automatic registration
• Autocanister support for non-fixed high-turnover medicines
• ACRS canister identification (chip-based)
• Variable pouch sizing: automatic selection across multiple pouch dimensions (optional)
• Pouch printing/customisation: supports medicine visuals, barcodes and batch numbers
• STS trays for multi-patient/manual assisted loading
• Optional automatic locking mechanism for medicine security
• Optional real-time monitoring and mobile app synchronisation
• Front-loading canister design for rapid stock replenishment without removal
• Class A certified consumable material for sealing and labelling
• Design focus: single-door, slim footprint for maximum storage density in confined spaces
