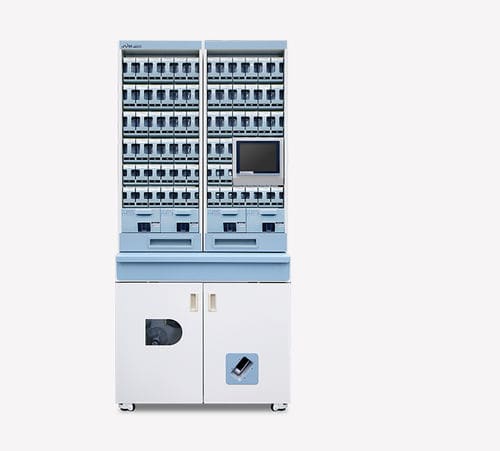

Medicine automated dispensing cabinet DOOR

pharmacyoptionswith touch screen

Overview
Double-door automated medication dispensing system designed for high-capacity hospital and pharmacy workflows. Provides immediate access for replenishment and a maximum capacity of 244 canisters for consolidated medicine management.

Key benefits

• High throughput: Optimised workflows to handle large patient volumes with rapid dispensing cycles.
• Large capacity: Up to 244 canisters to store a wide range of formulations in a single unit.
• Efficient replenishment: Double-door layout and clear canister identification enable fast, low-error restocking.

Available models

• DOC156 MODEL
  • No. of patients: 150 – 800
  • No. of canisters: 156
• DOOR208 MODEL
  • No. of patients: 150 – 800
  • No. of canisters: 208
• DOOR244 MODEL
  • No. of patients: 150 – 800
  • No. of canisters: 244

Components (total-access architecture)

• Canister: Reservoirs for secure storage and dispensing of medicines.
• Cartridge: Support module where each canister clips and connects.
• Autocanister: For loading special tablets without fixed canisters; automatic dosing for high-turnover items.
• STS Tray: Organising tray for manual loading; RFID-coded trays ensure correct placement and prevent mix-ups.
• LCD Touch Monitor: Touchscreen interface for system control, alarms and notifications.
• Upper door handle: Facilitates opening the upper door for immediate access.
• Final dispensing: Extraction point for packaged medication ready for verification and delivery.

Core features & systems

• Resource optimisation: Five pouch sizes adjustable to dose volume to reduce material use and optimise blister packaging.
• ACRS System: Auto-recognition of canisters regardless of position for precise inventory control and traceability.
• Autocanister: Dynamic automatic dispensing for fast-moving medicines without fixed canisters.
• STS Trays: Assisted loading with RFID-coded trays to eliminate placement errors.
• Verification: Barcode verification — unique barcode per canister to prevent restocking errors and link to central database.
• Personalization: Pouch printing with medicine details and patient dosing schedule; configurable language and layout.
• Touchscreen interface: Intuitive operation with visual alerts and audible notifications.
• DIY Canister Kit (optional): Enables independent adaptation of canisters for new medications.
• Agile management: Removable cartridge system for quick consumable replacement and uninterrupted operations.
• Class A certified paper: Blister paper meeting pharmacopeia standards for stability and legibility.
• Operational hygiene: Validated SOPs for rapid sanitisation and compliance with cleaning protocols.

Use cases & operational concept

• Designed for high-volume inventories where immediate visibility and double-door access speed up replenishment and stock supervision.
• Combines automated dispensing with manual loading (STS trays) to maintain continuous supply and maximise throughput.
• Generates personalised rolls of pouches for traceable distribution to wards or patients, ensuring end-to-end traceability.

Technical specifications

• Series: DOOR series
• Maximum canister capacity: up to 244 canisters (DOOR244)
• Model canister counts: DOC156 = 156 canisters; DOOR208 = 208 canisters; DOOR244 = 244 canisters
• Intended patient coverage: approximately 150–800 patients
• Double-door architecture for immediate access and agile stock management
• ACRS auto-recognition for automatic canister identification and full traceability
• Autocanister system for high-turnover medicines without fixed canisters
• STS trays with RFID coding for assisted, error-proof manual loading
• Unique barcode per canister for verified restocking and database linkage
• Touchscreen LCD monitor for operational control, alerts and notifications
• Five pouch sizes adjustable to dose volume; Class A certified blister paper for stability and legibility
• Optional DIY Canister Kit for independent adaptation of canisters
• Validated SOPs and design for simplified operational hygiene and regulatory compliance
• Designed to integrate with centralised MDS management software for patient, treatment and stock coordination
