2-body refrigerated mortuary cabinet TOMU 6020
1-bodyfront-loadingmodular

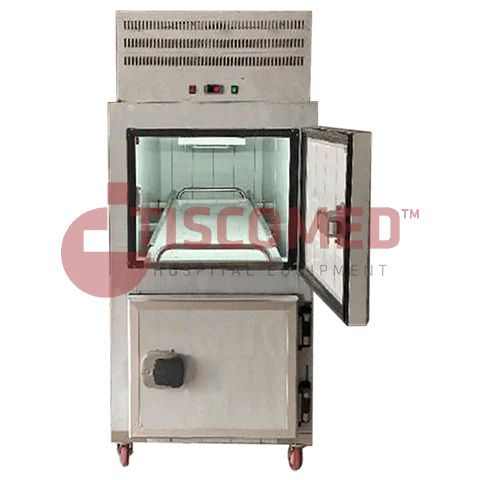

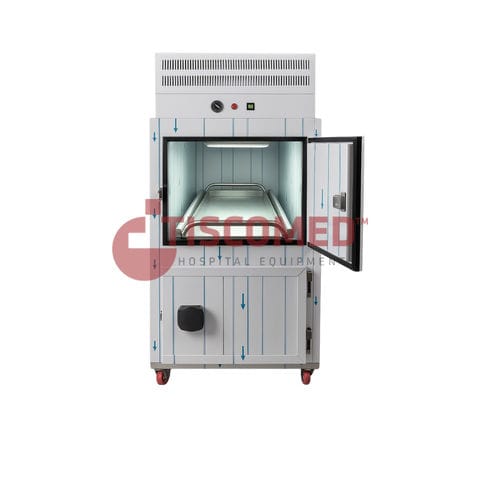

2-body refrigerated mortuary cabinet - TOMU 6020 - Tiscomed - 1-body / front-loading / modular
2-body refrigerated mortuary cabinet - TOMU 6020 - Tiscomed - 1-body / front-loading / modular
Add to favorites
Compare this product
Go to the Tiscomed website for more information

Characteristics

Number of bodies
2-body, 1-body
Loading
front-loading
Other characteristics
modular, with door

Description

Overview
  • Panel-type, double front door morgue unit TOMU 6020 designed for temporary preservation of human remains in sterile environments
  • Constructed with interior and exterior plates in 304 grade stainless steel
  • Available in different designs and dimensions to suit facility requirements


Key features
  • Polyurethane foam insulation (60–80 mm thickness; 38–42 kg/m³ density)
  • Front doors with locking system and internal release mechanism
  • Interior lighting that automatically switches on when the door is opened
  • Digital temperature indicator and control
  • Temperature range: standard 0 to +5 °C; optional -5 to +10 °C
  • R290 refrigerant compliant with European directives
  • Funeral trays in 1.2 mm 304 stainless steel with rail and pulley system for easy loading and unloading
  • Fully automatic defrost; fan-controlled internal cooler; condensate drain hose; cooling capacity approx. 1400 kcal
  • Four lockable wheels for relocation and cleaning (125 mm diameter)


Technical specifications
  • Model: TOMU 6020
  • Type: Panel type, double front door
  • Material: 304 grade stainless steel (interior/exterior plates)
  • Insulation: Polyurethane foam, 60–80 mm thickness; density 38–42 kg/m³
  • Refrigerant: R290
  • Control: Digital temperature indicator and control
  • Cooling capacity: ~1400 kcal
  • Mobility: 4 lockable castors (125 mm)
  • Dimensions (dual, front): 870 × 2360 × 1500 mm + 400 mm engine (engine mounted on top)
  • Production: Flexible manufacturing available in different designs and dimensions


Applications & compliance
  • Designed for hospitals, mortuaries and forensic facilities requiring sterile temporary preservation
  • R290 refrigerant conforms to applicable European directives
  • Configurable to institutional workflows and space constraints


Installation & maintenance
  • Engine unit mounted on top; installation by qualified refrigeration technician recommended
  • Removable trays and lockable wheels facilitate cleaning and maintenance
  • Manufacturer offers options for temperature range and custom dimensions
